Small Block Chevy engine

Small Block Chevy

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
8133-4060 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.125 8133-4060 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
388 Small Block Chevy, SX, Comp Height: 1.125, -16cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.64, 64cc-9.98, 70cc-9.41
Choose Options
8133-4040 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.125 8133-4040 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
385 Small Block Chevy, SX, Comp Height: 1.125, -16cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.57, 64cc-9.93, 70cc-9.36
Choose Options
8133-4030 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.125 8133-4030 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
383 Small Block Chevy, SX, Comp Height: 1.125, -16cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.52, 64cc-9.88, 70cc-9.31
Choose Options
8133-4000 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.125 8133-4000 383 Small Block Chevy SX Series -16cc Dish Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
377 Small Block Chevy, SX, Comp Height: 1.125, -16cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.39, 64cc-9.76, 70cc-9.2
Choose Options
8130-4185 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.125 8130-4185 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
413 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.76, 64cc-11.85, 70cc-11.06
Choose Options
8130-4165 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.125 8130-4165 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
409 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.65, 64cc-11.74, 70cc-10.99
Choose Options
8130-4155 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.125 8130-4155 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
407 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.59, 64cc-11.71, 70cc-10.94
Choose Options
8130-4125 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.125 8130-4125 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
401 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.44, 64cc-11.57, 70cc-10.81
Choose Options
8130-4060 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.125 8130-4060 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
388 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.12, 64cc-11.25, 70cc-10.53
Choose Options

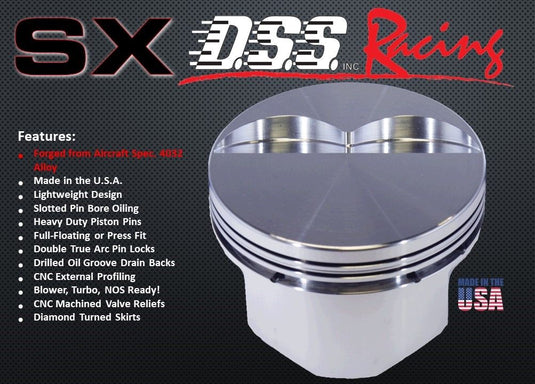

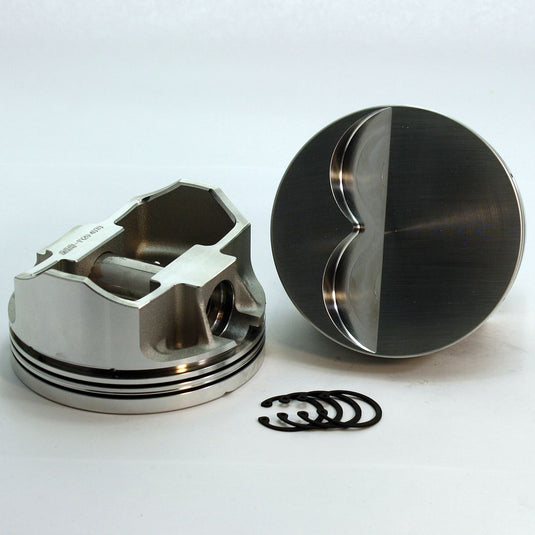

8130-4040 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.125 8130-4040 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
385 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.04, 64cc-11.2, 70cc-10.45
Choose Options
8130-4030 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.125 8130-4030 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
383 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-12.01, 64cc-11.14, 70cc-10.41
Choose Options
8130-4000 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.125 8130-4000 383 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.125
from $559.95
from $559.95
377 Small Block Chevy, SX, Comp Height: 1.125, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-11.83, 64cc-11.01, 70cc-10.28
Choose Options
8126-4185 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.425 8126-4185 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.425
from $559.95
from $559.95
413 Small Block Chevy, SX, Comp Height: 1.425, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 5.7, Approx Comp Ratio: 58cc-9.9, 64cc-9.38, 70cc-8.91
Choose Options
8126-4165 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.425 8126-4165 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.425
from $559.95
from $559.95
409 Small Block Chevy, SX, Comp Height: 1.425, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 5.7, Approx Comp Ratio: 58cc-9.83, 64cc-9.3, 70cc-8.84
Choose Options
8126-4155 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.425 8126-4155 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.425
from $559.95
from $559.95
407 Small Block Chevy, SX, Comp Height: 1.425, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 5.7, Approx Comp Ratio: 58cc-9.79, 64cc-9.26, 70cc-8.8
Choose Options
8126-4125 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.425 8126-4125 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.425
from $559.95
from $559.95
401 Small Block Chevy, SX, Comp Height: 1.425, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 5.7, Approx Comp Ratio: 58cc-9.67, 64cc-9.15, 70cc-8.7
Choose Options
