Ford 428

Ford 428

Cylinder Bore Size Show all Cylinder Bore Size
With Rings \ Without Rings Show all With Rings \ Without Rings
Crankshaft Stroke Show all Crankshaft Stroke
Connecting Rod Length Show all Connecting Rod Length
Piston Pin Diameter Show all Piston Pin Diameter
Compression Height Show all Compression Height
Cylinder Head Type Show all Cylinder Head Type
Piston Series Show all Piston Series
TDC Assembly Height Show all TDC Assembly Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio

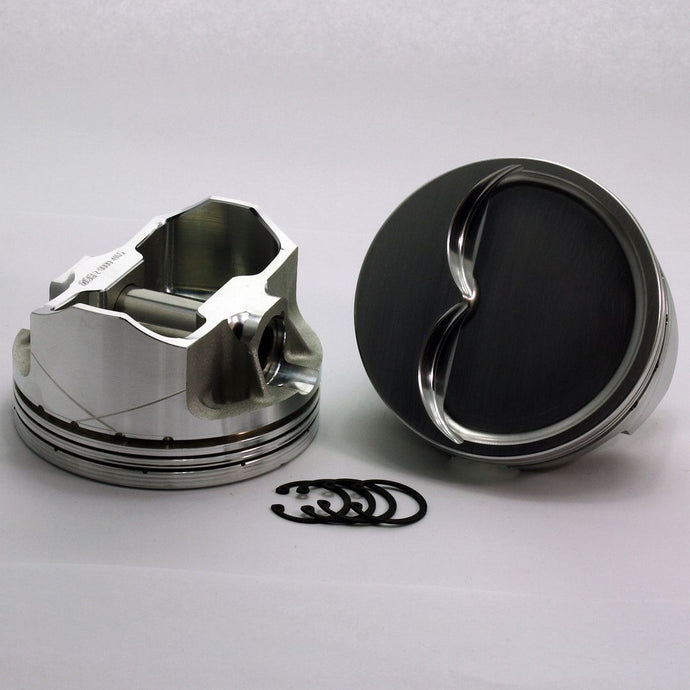

428 FE K1-FX Series FE Dish Top Piston 4.170 K1-5023-4170 428 FE Ford K1-FX Series -18cc FE Dish Top Forged Piston Set. 4.170 bore
$799.95
$799.95
428 FE K1-FX 4032 Alloy With Rings Comp Hgt: 1.674" -18cc FE Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.69, 72cc-10.01, 76cc-9.66
1-5023-4170 428 FE Ford 1-FX Series -18cc FE Dish Top Forged Piston Set. 4.170 bore 1-5023-4170 428 FE Ford 1-FX Series -18cc FE Dish Top Forged Piston Set. 4.170 bore
$649.95
$649.95
428 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.674" -18cc FE Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.69, 72cc-10.01, 76cc-9.66

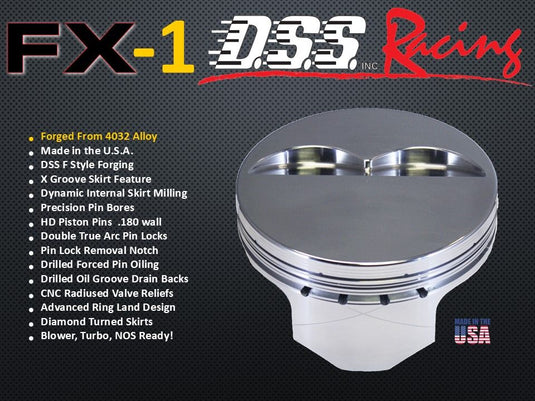

1-5020-4130 428 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.130 bore 1-5020-4130 428 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.130 bore
$649.95
$649.95
428 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.674" -5cc FE Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.10, 72cc-11.20, 76cc-10.74
428 FE K1-FX Series FE Dish Top Piston 4.190 K1-5023-4190 428 FE Ford K1-FX Series -18cc FE Dish Top Forged Piston Set. 4.190 bore
$799.95
$799.95
428 FE K1-FX 4032 Alloy With Rings Comp Hgt: 1.674" -18cc FE Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.77, 72cc-10.08, 76cc-9.73
428 FE K1-FX Series FE Dish Top Piston 4.130 K1-5023-4130 428 FE Ford K1-FX Series -18cc FE Dish Top Forged Piston Set. 4.130 bore
$799.95
$799.95
428 FE K1-FX 4032 Alloy With Rings Comp Hgt: 1.674" -18cc FE Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.53, 72cc-9.86, 76cc-9.51
428 FE K1-FX Series FE Dish Top Piston 4.110 K1-5023-4110 428 FE Ford K1-FX Series -18cc FE Dish Top Forged Piston Set. 4.110 bore
$799.95
$799.95
428 FE K1-FX 4032 Alloy With Rings Comp Hgt: 1.674" -18cc FE Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.45, 72cc-9.78, 76cc-9.44
428 FE K1-FX Series FE Flat Top Piston 4.170 K1-5020-4170 428 FE Ford K1-FX Series -5cc FE Flat Top Forged Piston Set. 4.170 bore
$799.95
$799.95
428 FE K1-FX 4032 Alloy With Rings Comp Hgt: 1.674" -5cc FE Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.29, 72cc-11.37, 76cc-10.91
K3-5053-4190 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.190 bore K3-5053-4190 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.190 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -18cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-10.77, 72cc-10.08, 76cc-9.73
K3-5053-4170 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.170 bore K3-5053-4170 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.170 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -18cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-10.69, 72cc-10.01, 76cc-9.66
K3-5053-4160 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.160 bore K3-5053-4160 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.160 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -18cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-10.65, 72cc-9.97, 76cc-9.62
K3-5053-4130 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.130 bore K3-5053-4130 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.130 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -18cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-10.53, 72cc-9.86, 76cc-9.51
K3-5050-4190 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.190 bore K3-5050-4190 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.190 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-12.38, 72cc-11.45, 76cc-10.99
K3-5050-4170 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.170 bore K3-5050-4170 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.170 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-12.29, 72cc-11.37, 76cc-10.91
K3-5050-4160 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.160 bore K3-5050-4160 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.160 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-12.24, 72cc-11.32, 76cc-10.87
K3-5050-4130 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.130 bore K3-5050-4130 428 FE Ford K3-FX Series -5cc FE Flat Top Forged Piston Set. 4.130 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.470" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.700" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-12.10, 72cc-11.20, 76cc-10.74
K3-5023-4190 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.190 bore K3-5023-4190 428 FE Ford K3-FX Series -18cc FE Dish Top Forged Piston Set. 4.190 bore
$1,189.95
$1,189.95
428 FE Ford K3-FX 2618 Alloy With Rings Comp Hgt: 1.674" -18cc FE Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.984" Rod: 6.489" Forged and Machined in Saint Charles Illinois USA! Boost and NOS Ready! (Moderate to Extreme Levels) Aprox Comp Ratio: 65cc-10.77, 72cc-10.08, 76cc-9.73
