Ford Barra XR6

9 products
REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Ring Groove Width Show all Ring Groove Width
4704-3652 4.0 Ford Barra XR6 FX Series -15cc Dish Top Ford Barra DOCH Forged Piston Set 3.652 inch bore Pin Dia.: 0.866 4704-3652 4.0 Ford Barra XR6 FX Series -15cc Dish Top Ford Barra DOCH Forged Piston Set 3.652 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
246 Ford Barra XR6, FX, Comp Height: 1.21, -15cc Dish Top, PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-9.2, 65cc-8.74, 68cc-8.48
Choose Options
4703-3642 4.0 Ford Barra XR6 FX Series -9cc Dish Top Ford Barra DOCH Forged Piston Set 3.642 inch bore Pin Dia.: 0.866 4703-3642 4.0 Ford Barra XR6 FX Series -9cc Dish Top Ford Barra DOCH Forged Piston Set 3.642 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
244 Ford Barra XR6, FX, Comp Height: 1.21, -9cc Dish Top, PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-9.78, 65cc-9.25, 68cc-8.94
Choose Options
4704-3632 4.0 Ford Barra XR6 FX Series -15cc Dish Top Ford Barra DOCH Forged Piston Set 3.632 inch bore Pin Dia.: 0.866 4704-3632 4.0 Ford Barra XR6 FX Series -15cc Dish Top Ford Barra DOCH Forged Piston Set 3.632 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
243 Ford Barra XR6, FX, Comp Height: 1.21, -15cc Dish Top, PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-9.12, 65cc-8.64, 68cc-8.39
Choose Options
4704-3642 4.0 Ford Barra XR6 FX Series -15cc Dish Top Ford Barra DOCH Forged Piston Set 3.642 inch bore Pin Dia.: 0.866 4704-3642 4.0 Ford Barra XR6 FX Series -15cc Dish Top Ford Barra DOCH Forged Piston Set 3.642 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
244 Ford Barra XR6, FX, Comp Height: 1.21, -15cc Dish Top, PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-9.15, 65cc-8.67, 68cc-8.42
Choose Options
4703-3652 4.0 Ford Barra XR6 FX Series -9cc Dish Top Ford Barra DOCH Forged Piston Set 3.652 inch bore Pin Dia.: 0.866 4703-3652 4.0 Ford Barra XR6 FX Series -9cc Dish Top Ford Barra DOCH Forged Piston Set 3.652 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
246 Ford Barra XR6, FX, Comp Height: 1.21, -9cc Dish Top, PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-9.86, 65cc-9.32, 68cc-9.01
Choose Options
4700-3652 4.0 Ford Barra XR6 FX Series -4cc Flat Top Ford Barra DOCH Forged Piston Set 3.652 inch bore Pin Dia.: 0.866 4700-3652 4.0 Ford Barra XR6 FX Series -4cc Flat Top Ford Barra DOCH Forged Piston Set 3.652 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
246 Ford Barra XR6, FX, Comp Height: 1.21, -4cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-10.49, 65cc-9.86, 68cc-9.52
Choose Options

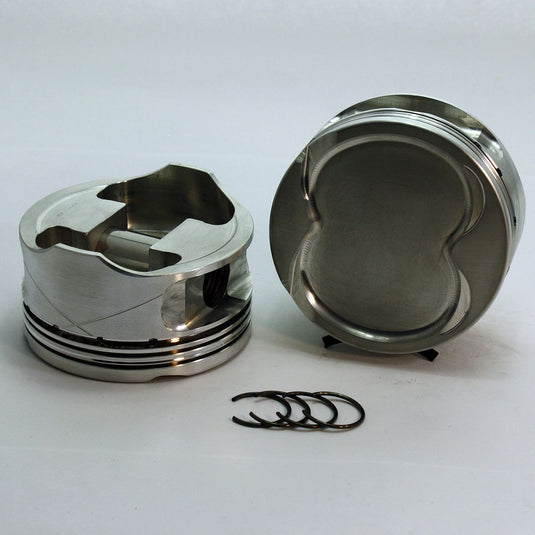

4703-3632 4.0 Ford Barra XR6 FX Series -9cc Dish Top Ford Barra DOCH Forged Piston Set 3.632 inch bore Pin Dia.: 0.866 4703-3632 4.0 Ford Barra XR6 FX Series -9cc Dish Top Ford Barra DOCH Forged Piston Set 3.632 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
243 Ford Barra XR6, FX, Comp Height: 1.21, -9cc Dish Top, PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-9.77, 65cc-9.22, 68cc-8.93
Choose Options

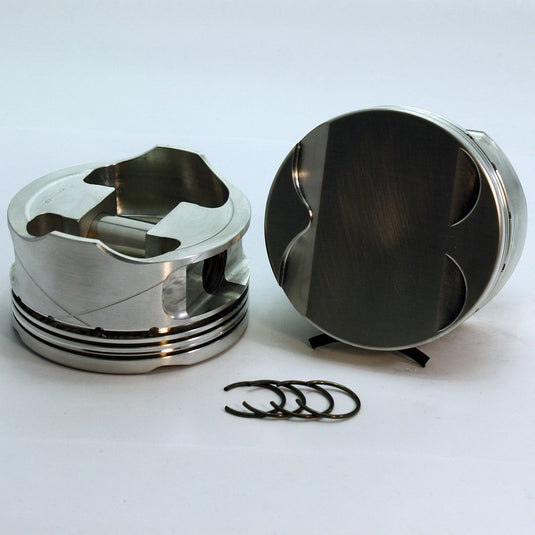

4700-3632 4.0 Ford Barra XR6 FX Series -4cc Flat Top Ford Barra DOCH Forged Piston Set 3.632 inch bore Pin Dia.: 0.866 4700-3632 4.0 Ford Barra XR6 FX Series -4cc Flat Top Ford Barra DOCH Forged Piston Set 3.632 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
243 Ford Barra XR6, FX, Comp Height: 1.21, -4cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-10.380, 65cc-9.77, 68cc-9.42
Choose Options

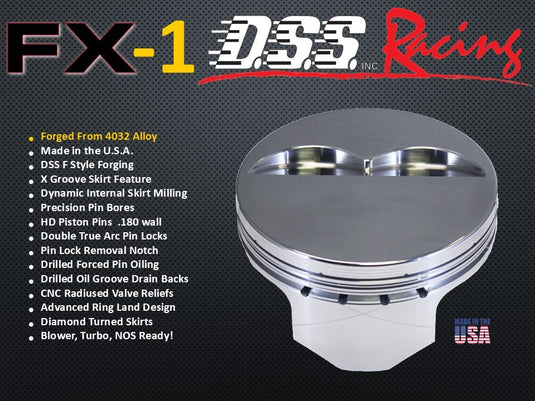

4700-3642 4.0 Ford Barra XR6 FX Series -4cc Flat Top Ford Barra DOCH Forged Piston Set 3.642 inch bore Pin Dia.: 0.866 4700-3642 4.0 Ford Barra XR6 FX Series -4cc Flat Top Ford Barra DOCH Forged Piston Set 3.642 inch bore Pin Dia.: 0.866
from $719.95
from $719.95
244 Ford Barra XR6, FX, Comp Height: 1.21, -4cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.909", ROD: 6.057, Approx Comp Ratio: 60cc-10.41, 65cc-9.78, 68cc-9.45
Choose Options
