Small Block Chevy engine

Small Block Chevy

STEP 1: Choose Cyl Bore Size Show all STEP 1: Choose Cyl Bore Size
STEP 2: Piston Series Show all STEP 2: Piston Series
STEP 3: Connecting Rod Length Show all STEP 3: Connecting Rod Length
STEP 4: Piston Pin Diameter Show all STEP 4: Piston Pin Diameter
STEP 5: Cylinder Head Type Show all STEP 5: Cylinder Head Type
STEP 6: Top - Comp. Ratio Show all STEP 6: Top - Comp. Ratio
Compression Height Show all Compression Height
Crankshaft Stroke Show all Crankshaft Stroke
8107-4040 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore Pin Dia.: 0.927 8107-4040 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore Pin Dia.: 0.927
from $689.95
from $689.95
360 Small Block Chevy, SX, Comp Height: 1.56, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-12.81, 64cc-11.77, 70cc-10.89 *
Choose Options
8107-4030 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore Pin Dia.: 0.927 8107-4030 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore Pin Dia.: 0.927
from $689.95
from $689.95
357 Small Block Chevy, SX, Comp Height: 1.56, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-12.71, 64cc-11.7, 70cc-10.83 *
Choose Options
8107-4000 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore Pin Dia.: 0.927 8107-4000 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore Pin Dia.: 0.927
from $689.95
from $689.95
355 Small Block Chevy, SX, Comp Height: 1.56, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-12.65, 64cc-11.64, 70cc-10.77 *
Choose Options
8105-4185 350 Small Block Chevy SX Series -21cc Dish Top SBC 23 Degree Forged Piston Set 4.185 inch bore Pin Dia.: 0.927 8105-4185 350 Small Block Chevy SX Series -21cc Dish Top SBC 23 Degree Forged Piston Set 4.185 inch bore Pin Dia.: 0.927
from $689.95
from $689.95
350 Small Block Chevy, SX, Comp Height: 1.56, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-12.51, 64cc-11.52, 70cc-10.66 *
Choose Options

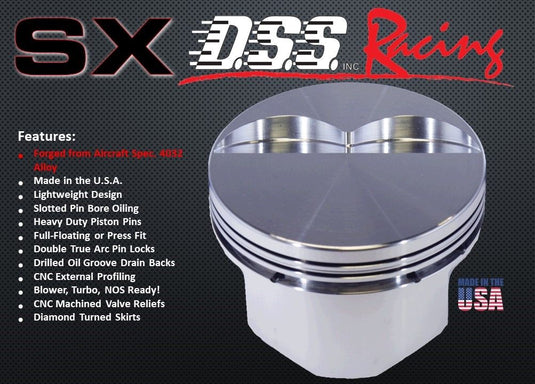

8170-3776 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.776 inch bore Pin Dia.: 0.927 8170-3776 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.776 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
317 Small Block Chevy, SX, Comp Height: 1.26, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 6, Approx Comp Ratio: 58cc-10.22, 64cc-9.5, 70cc-8.88 *
Choose Options

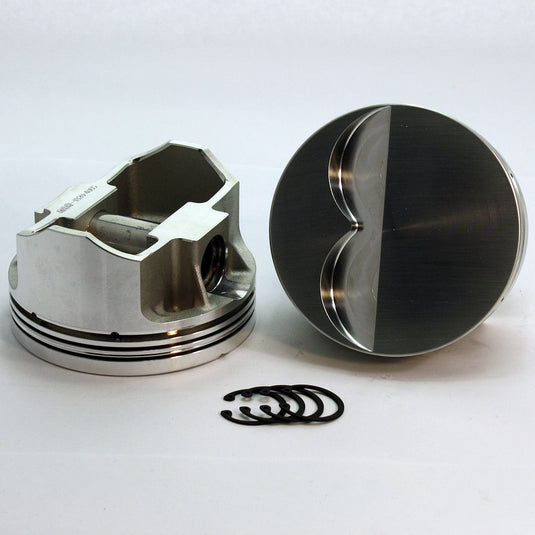

8170-3766 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.766 inch bore Pin Dia.: 0.927 8170-3766 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.766 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
314 Small Block Chevy, SX, Comp Height: 1.26, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 6, Approx Comp Ratio: 58cc-10.15, 64cc-9.42, 70cc-8.82 *
Choose Options
8170-3736 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.736 inch bore Pin Dia.: 0.927 8170-3736 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.736 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
312 Small Block Chevy, SX, Comp Height: 1.26, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 6, Approx Comp Ratio: 58cc-10.09, 64cc-9.37, 70cc-8.77 *
Choose Options
8160-3796 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.796 inch bore Pin Dia.: 0.927 8160-3796 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.796 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
307 Small Block Chevy, SX, Comp Height: 1.26, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 6, Approx Comp Ratio: 58cc-9.97, 64cc-9.25, 70cc-8.66 *
Choose Options
8160-3776 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.776 inch bore Pin Dia.: 0.927 8160-3776 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.776 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
317 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.7, Approx Comp Ratio: 58cc-10.22, 64cc-9.5, 70cc-8.88 *
Choose Options
8160-3766 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.766 inch bore Pin Dia.: 0.927 8160-3766 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.766 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
314 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.7, Approx Comp Ratio: 58cc-10.15, 64cc-9.42, 70cc-8.82 *
Choose Options
8160-3736 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.736 inch bore Pin Dia.: 0.927 8160-3736 305 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 3.736 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
312 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.7, Approx Comp Ratio: 58cc-10.09, 64cc-9.37, 70cc-8.77 *
Choose Options
8157-4185 396 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.185 inch bore Pin Dia.: 0.927 8157-4185 396 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.185 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
307 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.7, Approx Comp Ratio: 58cc-9.97, 64cc-9.25, 70cc-8.66 *
Choose Options
8136-4165 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.165 inch bore Pin Dia.: 0.927 8136-4165 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.165 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
413 Small Block Chevy, SX, Comp Height: 1.125, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-9.9, 64cc-9.38, 70cc-8.91 *
Choose Options
8136-4155 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.155 inch bore Pin Dia.: 0.927 8136-4155 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.155 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
409 Small Block Chevy, SX, Comp Height: 1.125, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-9.83, 64cc-9.3, 70cc-8.84 *
Choose Options
8136-4125 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.125 inch bore Pin Dia.: 0.927 8136-4125 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.125 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
407 Small Block Chevy, SX, Comp Height: 1.125, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-9.79, 64cc-9.26, 70cc-8.8 *
Choose Options
8136-4060 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore Pin Dia.: 0.927 8136-4060 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore Pin Dia.: 0.927
from $649.95
from $649.95
401 Small Block Chevy, SX, Comp Height: 1.125, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-9.67, 64cc-9.15, 70cc-8.7 *
Choose Options
