Ford Galaxy 500 Rear view

Ford 455

Clear all
Cylinder Bore Size Show all Cylinder Bore Size
With Rings \ Without Rings Show all With Rings \ Without Rings
Crankshaft Stroke Show all Crankshaft Stroke
Connecting Rod Length Show all Connecting Rod Length
Piston Pin Diameter Show all Piston Pin Diameter
Compression Height Show all Compression Height
Cylinder Head Type Show all Cylinder Head Type
Piston Series Show all Piston Series
TDC Assembly Height Show all TDC Assembly Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
1-5070-4050 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.050 bore 1-5070-4050 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.050 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.44, 72cc-11.50, 76cc-11.03
1-5070-4080 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.080 bore 1-5070-4080 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.080 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.60, 72cc-11.65, 76cc-11.18
1-5070-4090 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.090 bore 1-5070-4090 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.090 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.65, 72cc-11.70, 76cc-11.22
1-5070-4110 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.110 bore 1-5070-4110 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.110 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.74, 72cc-11.78, 76cc-11.30
1-5070-4130 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.130 bore 1-5070-4130 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.130 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.83, 72cc-11.87, 76cc-11.38
1-5070-4160 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.160 bore 1-5070-4160 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.160 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-12.99, 72cc-12.02, 76cc-11.53
1-5070-4170 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.170 bore 1-5070-4170 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.170 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-13.04, 72cc-12.06, 76cc-11.57
1-5070-4190 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.190 bore 1-5070-4190 455 FE Ford 1-FX Series -5cc FE Flat Top Forged Piston Set. 4.190 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -5cc FE Flat Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-13.16, 72cc-12.17, 76cc-11.67

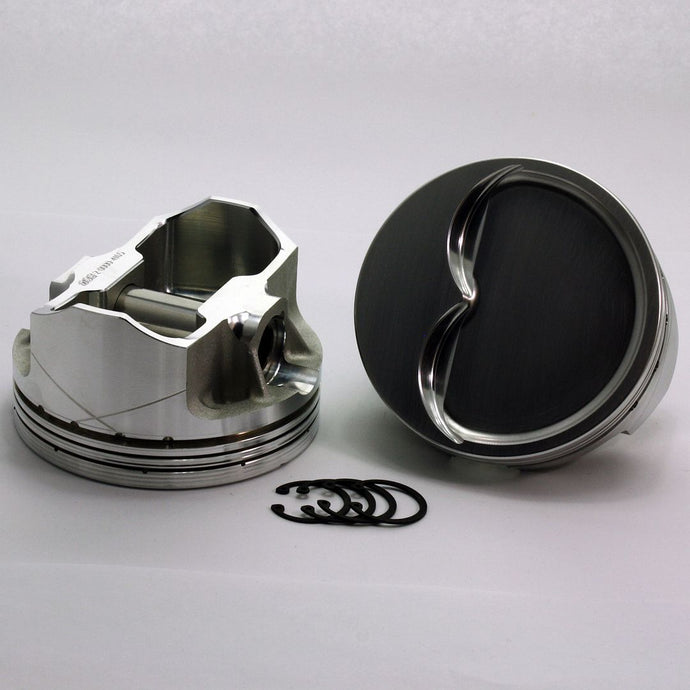

1-5073-4050 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.050 bore 1-5073-4050 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.050 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.21, 72cc-9.59, 76cc-9.27
1-5073-4080 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.080 bore 1-5073-4080 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.080 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.34, 72cc-9.72, 76cc-9.40
1-5073-4090 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.090 bore 1-5073-4090 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.090 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.38, 72cc-9.75, 76cc-9.43
1-5073-4110 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.110 bore 1-5073-4110 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.110 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.46, 72cc-9.82, 76cc-9.50
1-5073-4130 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.130 bore 1-5073-4130 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.130 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.53, 72cc-9.90, 76cc-9.57
1-5073-4160 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.160 bore 1-5073-4160 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.160 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.67, 72cc-10.02, 76cc-9.69
1-5073-4170 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.170 bore 1-5073-4170 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.170 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.70, 72cc-10.06, 76cc-9.72
1-5073-4190 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.190 bore 1-5073-4190 455 FE Ford 1-FX Series -24cc FE Dish Top Forged Piston Set. 4.190 bore
$669.95
$669.95
455 FE Ford 1-FX Series 4032 Alloy Comp Hgt: 1.335" -24cc FE Dish Top Pin: .990 Ring Grooves: 1/16-1/16-3/16" Stroke: 4.250" Rod: 6.700" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 65cc-10.80, 72cc-10.15, 76cc-9.81
