L6 4.9-300 Ford 6 Cyl.

L6 4.9-300 Ford 6 Cyl.

Cylinder Bore Size Show all Cylinder Bore Size
With Rings \ Without Rings Show all With Rings \ Without Rings
Crankshaft Stroke Show all Crankshaft Stroke
Connecting Rod Length Show all Connecting Rod Length
Piston Pin Diameter Show all Piston Pin Diameter
Compression Height Show all Compression Height
Cylinder Head Type Show all Cylinder Head Type
Piston Series Show all Piston Series
TDC Assembly Height Show all TDC Assembly Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio

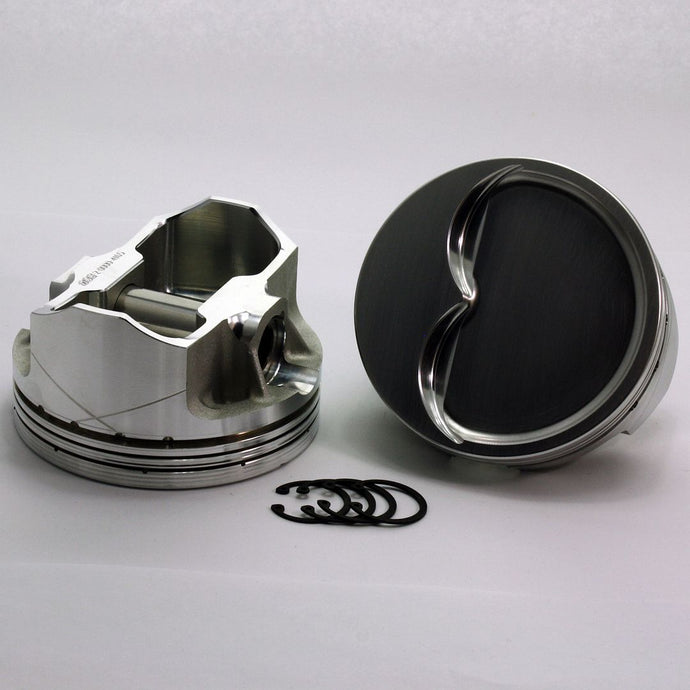

K1-5003-4060C300 L6 K1-FX Series L6 Dish Top Piston 4.060 K1-5003-4060C 300 L6 Ford 6 Cylinder K1-FX Series -10cc L6 Dish Top Forged Piston Set. 4.060 bore
$774.95
$774.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.76, 74cc-10.13, 78cc-9.75
1-5000-4060C 300 L6 Ford 1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.060 bore 1-5000-4060C 300 L6 Ford 6 Cylinder 1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.060 bore
$599.95
$599.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.36, 74cc-10.65, 78cc-10.23
1-5000-4000C 300 L6 Ford 1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.000 bore 1-5000-4000C 300 L6 Ford 6 Cylinder 1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.000 bore
$599.95
$599.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.09, 74cc-10.39, 78cc-9.98
K2-5000-4060C 300 L6 Ford K2-FX Series -5cc L6 Flat Top Forged Piston Set. 4.060 bore K2-5000-4060C 300 L6 Ford 6 Cylinder K2-FX Series -5cc L6 Flat Top Forged Piston Set. 4.060 bore
$804.95
$804.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.36, 74cc-10.65, 78cc-10.23
K1-5003-4030C 300 L6 K1-FX Series L6 Dish Top Piston 4.030 K1-5003-4030C 300 L6 Ford 6 Cylinder K1-FX Series -10cc L6 Dish Top Forged Piston Set. 4.030 bore
$774.95
$774.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.65, 74cc-10.02, 78cc-9.65
K1-5000-4000C 300 L6 K1-FX Series L6 Flat Top Piston 4.000 K1-5000-4000C 300 L6 Ford 6 Cylinder K1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.000 bore
$774.95
$774.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.09, 74cc-10.39, 78cc-9.98
3-5003-4060C 300 L6 Ford 3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.060 bore 3-5003-4060C 300 L6 Ford 6 Cylinder 3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.060 bore
$819.95
$819.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.76, 74cc-10.13, 78cc-9.75
1-5003-4030C 300 L6 Ford 1-FX Series -10cc L6 Dish Top Forged Piston Set. 4.030 bore 1-5003-4030C 300 L6 Ford 6 Cylinder 1-FX Series -10cc L6 Dish Top Forged Piston Set. 4.030 bore
$599.95
$599.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.65, 74cc-10.02, 78cc-9.65
2-5003-4030C 300 L6 Ford 6 Cylinder 2-FX Series -10cc L6 Dish Top Forged Piston Set. 4.040 bore
$629.95
$629.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.67, 74cc-10.05, 78cc-9.67
2-5000-4030C 300 L6 Ford 6 Cylinder 2-FX Series -5cc L6 Flat Top Forged Piston Set. 4.040 bore
$629.95
$629.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.27, 74cc-10.56, 78cc-10.14
1-5000-4030C 300 L6 Ford 1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.030 bore 1-5000-4030C 300 L6 Ford 6 Cylinder 1-FX Series -5cc L6 Flat Top Forged Piston Set. 4.030 bore
$599.95
$599.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.24, 74cc-10.54, 78cc-10.12
K3-5003-4060C 300 L6 Ford K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.060 bore K3-5003-4060C 300 L6 Ford 6 Cylinder K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.060 bore
$1,104.95
$1,104.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.76, 74cc-10.13, 78cc-9.75
K3-5003-4040C 300 L6 Ford K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.040 bore K3-5003-4040C 300 L6 Ford 6 Cylinder K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.040 bore
$1,104.95
$1,104.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.67, 74cc-10.05, 78cc-9.67
K3-5003-4000C 300 L6 K3-FX Series L6 Dish Top Piston 4.000 K3-5003-4000C 300 L6 Ford 6 Cylinder K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.000 bore
$1,104.95
$1,104.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.50, 74cc-9.88, 78cc-9.51
K3-5003-4030C 300 L6 Ford K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.030 bore K3-5003-4030C 300 L6 Ford 6 Cylinder K3-FX Series -10cc L6 Dish Top Forged Piston Set. 4.030 bore
$1,104.95
$1,104.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -10cc L6 Dish Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-10.65, 74cc-10.02, 78cc-9.65
K3-5000-4060C 300 L6 Ford K3-FX Series -5cc L6 Flat Top Forged Piston Set. 4.060 bore K3-5000-4060C 300 L6 Ford 6 Cylinder K3-FX Series -5cc L6 Flat Top Forged Piston Set. 4.060 bore
$1,104.95
$1,104.95
300 L6 Ford 6 Cylinder 1-FX Series 4032 Alloy Comp Hgt: 1.775" -5cc L6 Flat Top Pin: .975 Ring Grooves: 1/16-1/16-3/16" Stroke: 3.980" Rod: 6.210" Boost and NOS Ready! (Moderate to High Levels) Aprox Comp Ratio: 68cc-11.36, 74cc-10.65, 78cc-10.23
