LS powered Camaro

Chevy LS

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio

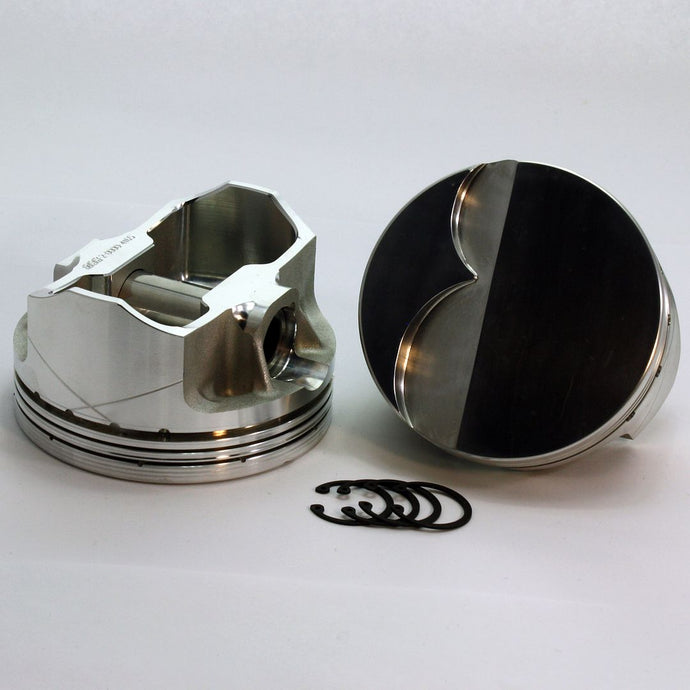

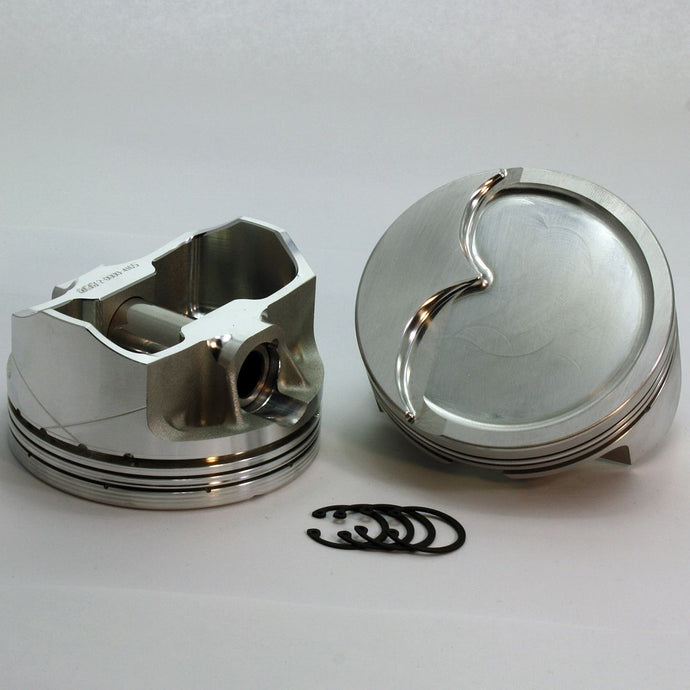

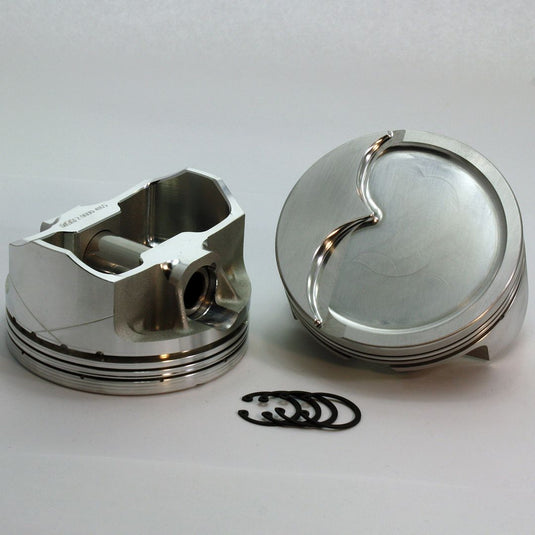

1931-4000 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.14 1931-4000 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
402 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.01, 66cc-10.78, 72cc-10.12
Choose Options
1931-4005 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.005 inch bore COMP HEIGHT: 1.14 1931-4005 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.005 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
403 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.03, 66cc-10.8, 72cc-10.14
Choose Options
1931-4030 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.14 1931-4030 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
408 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.14, 66cc-10.9, 72cc-10.26
Choose Options
1931-4040 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.14 1931-4040 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
410 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.19, 66cc-10.95, 72cc-10.28
Choose Options
1931-4060 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.14 1931-4060 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
414 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.29, 66cc-11.03, 72cc-10.380
Choose Options
1931-4065 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.065 inch bore COMP HEIGHT: 1.14 1931-4065 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.065 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
415 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.31, 66cc-11.05, 72cc-10.4
Choose Options
1931-4070 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.070 inch bore COMP HEIGHT: 1.14 1931-4070 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.070 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
416 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.32, 66cc-11.08, 72cc-10.42
Choose Options
1931-4075 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.075 inch bore COMP HEIGHT: 1.14 1931-4075 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.075 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
417 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.34, 66cc-11.1, 72cc-10.43
Choose Options
1931-4125 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.14 1931-4125 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
428 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.59, 66cc-11.35, 72cc-10.66
Choose Options
1931-4130 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.130 inch bore COMP HEIGHT: 1.14 1931-4130 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.130 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
429 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.62, 66cc-11.37, 72cc-10.68
Choose Options
1931-4155 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.14 1931-4155 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
434 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.72, 66cc-11.47, 72cc-10.77
Choose Options
1931-4165 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.14 1931-4165 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
436 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.77, 66cc-11.52, 72cc-10.82
Choose Options
1931-4185 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.14 1931-4185 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -10cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
440 Chevy LS, SX, Comp Height: 1.14, -10cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-11.85, 66cc-11.6, 72cc-10.91
Choose Options
1933-4000 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.14 1933-4000 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
402 Chevy LS, SX, Comp Height: 1.14, -15cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-10.45, 66cc-10.22, 72cc-9.65
Choose Options
1933-4005 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.005 inch bore COMP HEIGHT: 1.14 1933-4005 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.005 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
403 Chevy LS, SX, Comp Height: 1.14, -15cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-10.47, 66cc-10.24, 72cc-9.67
Choose Options
1933-4030 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.14 1933-4030 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.14
from $559.95
from $559.95
408 Chevy LS, SX, Comp Height: 1.14, -15cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-10.57, 66cc-10.36, 72cc-9.76
Choose Options
