Small Block Chevy engine

Chevy 350

Clear all
REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
8117-4000 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.26 8117-4000 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
350 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-12.51, 64cc-11.52, 70cc-10.66
Choose Options
8117-4030 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.26 8117-4030 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
355 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-12.65, 64cc-11.64, 70cc-10.77
Choose Options
8117-4040 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.26 8117-4040 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
357 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-12.71, 64cc-11.7, 70cc-10.83
Choose Options
8117-4060 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.26 8117-4060 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
360 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-12.81, 64cc-11.77, 70cc-10.89
Choose Options
8117-4125 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.26 8117-4125 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
372 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-13.14, 64cc-12.07, 70cc-11.2
Choose Options
8117-4155 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.26 8117-4155 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
377 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-13.27, 64cc-12.22, 70cc-11.31
Choose Options
8117-4165 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.26 8117-4165 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
379 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-13.34, 64cc-12.25, 70cc-11.37
Choose Options
8117-4185 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.26 8117-4185 350 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.26
from $599.95
from $599.95
383 Small Block Chevy, SX, Comp Height: 1.26, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 6, Approx Comp Ratio: 58cc-13.44, 64cc-12.37, 70cc-11.45
Choose Options
8700-4000 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56 8700-4000 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
350 Small Block Chevy, E, Comp Height: 1.56, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.2, 64cc-10.41, 70cc-9.72
Choose Options
8700-4030 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56 8700-4030 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
355 Small Block Chevy, E, Comp Height: 1.56, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.34, 64cc-10.52, 70cc-9.82
Choose Options
8700-4040 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56 8700-4040 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
357 Small Block Chevy, E, Comp Height: 1.56, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.38, 64cc-10.58, 70cc-9.87
Choose Options

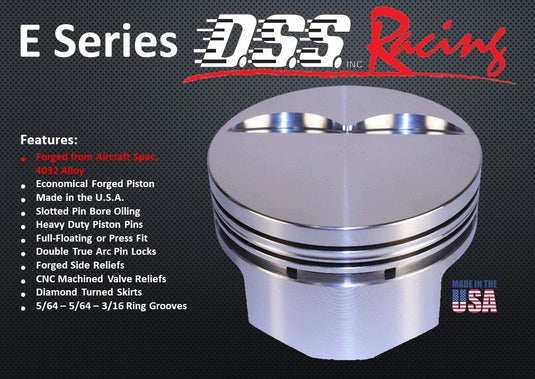

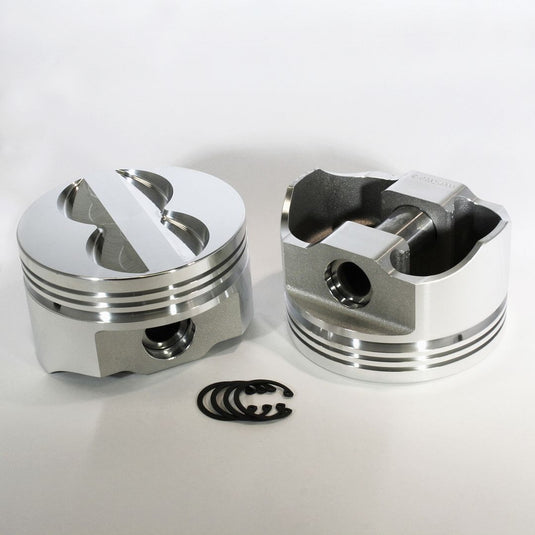

8700-4060 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56 8700-4060 350 Small Block Chevy E Series -4cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
360 Small Block Chevy, E, Comp Height: 1.56, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.47, 64cc-10.64, 70cc-9.95
Choose Options
8702-4000 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56 8702-4000 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
350 Small Block Chevy, E, Comp Height: 1.56, -8cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.66, 64cc-9.93, 70cc-9.32
Choose Options
8702-4030 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56 8702-4030 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
355 Small Block Chevy, E, Comp Height: 1.56, -8cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.77, 64cc-10.06, 70cc-9.42
Choose Options
8702-4040 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56 8702-4040 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
357 Small Block Chevy, E, Comp Height: 1.56, -8cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.83, 64cc-10.09, 70cc-9.47
Choose Options

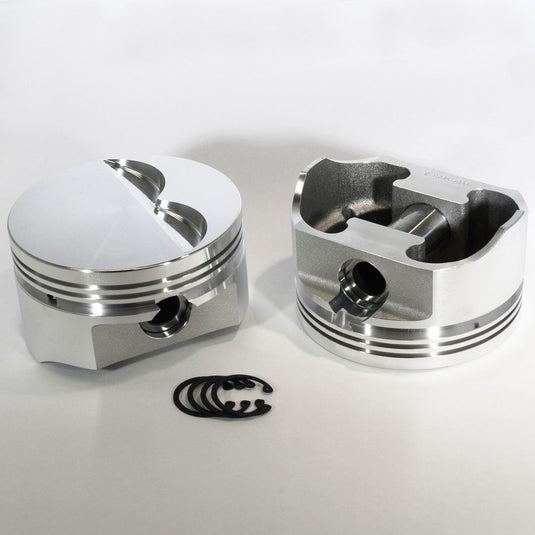

8702-4060 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56 8702-4060 350 Small Block Chevy E Series -8cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56
from $409.95
from $409.95
360 Small Block Chevy, E, Comp Height: 1.56, -8cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.89, 64cc-10.16, 70cc-9.52
Choose Options
