Engine Brand: Chevy
Engine Family: Small Block Chevy
Engine Size: 350
With/Without Rings: Without Rings
Cylinder Bore Size: 4.040 in , 102.535 mm
Ring Width: 5/64-5/64-3/16"
Compression Height: 1.260"
Pin Diameter: 0.927"
Connecting Rod Length: 6.000"
Crankshaft Stroke: 3.480"
Piston Series: E 4032 Alloy
Alloy: 4032 Alloy
Cylinder Head: SBC 23 Degree
TDC Assembly Height: 9.000"
Piston Top Aprox. Comp. Ratio:
-4cc Flat Top SBC 23 Degree
| Chamber | Comp Ratio |
|---|
| 58 | 11.38 to 1 |
| 64 | 10.58 to 1 |
| 70 | 9.87 to 1 |
Download Piston Instructions

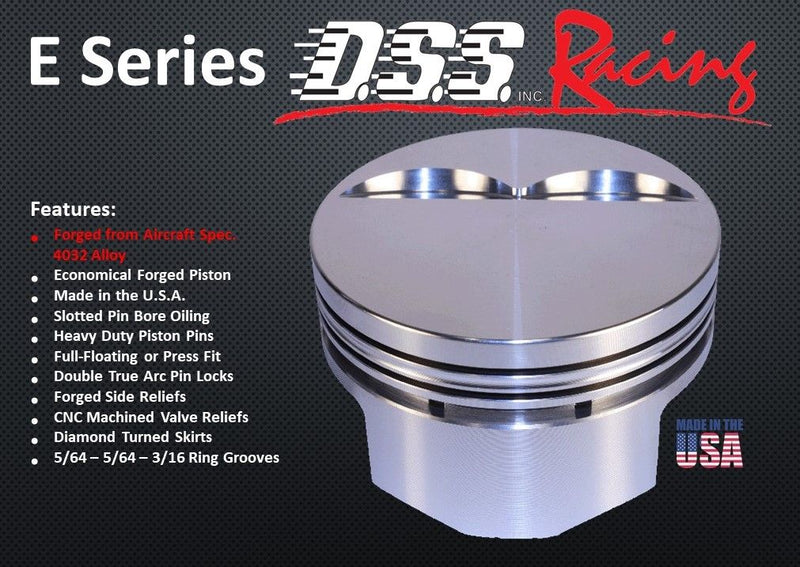

| Features: |
Piston Series |
|
| |
E series
|
SX series |
1-FX series |
2-FX series |
3-FX series |
| Broached pin oiling slots |
x
|
x
|
|
|
|
| Drilled, forced wrist pin oiling |
|
x
|
x
|
x
|
x
|
| Forged drain-back windows |
x
|
|
|
|
|
| Drilled bottom ring land intersecting oil groove drain-backs |
|
x
|
x
|
x
|
x
|
| Slightly larger, deeper valve reliefs than OEM |
x
|
|
|
|
|
| CNC machined valve reliefs for moderate performance heads and cam combinations |
|
x
|
|
|
|
| Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations |
|
|
x
|
x
|
x
|
| Premium Aircraft spec. 4032 low expansion alloy |
x
|
x
|
x
|
|
|
| Premium Aircraft spec. 2618 alloy |
|
|
|
x
|
x
|
| Blower, Turbo, NOS ready |
|
x
|
x
|
x
|
x
|
| Brushed piston crown |
|
|
x
|
x
|
x
|
| Turned dishs |
x
|
x
|
|
|
|
| Max Quench milled dishs |
|
|
x
|
x
|
x
|
| Additional CNC milling for weight reduction in non-critical areas |
|
|
x
|
x
|
x
|
| Patented “X Groove” skirt for superior cylinder and ring life |
|
|
x
|
x
|
x
|
| Thinner/shallower Ring grooves for maximum ring seal and land strength |
|
|
x
|
x
|
x
|
| Low volume contact reduction grooves |
|
|
x
|
x
|
x
|
| 2nd ring land accumulator groove prevents ring flutter |
|
|
x
|
x
|
x
|
| 3rd ring land scraper relief |
|
|
x
|
x
|
x
|
| Oil ring groove relief reservoir |
|
|
x
|
x
|
x
|
| Inner and outer pin boss weight reduction radiusing |
|
|
x
|
x
|
x
|
| Tighter control of crown thickness yields consistently lighter parts |
|
|
x
|
x
|
x
|
| Dynamic skirt milling controls skirt thickness for consistently lighter parts |
|
|
x
|
x
|
x
|
| Diamond-turned high strength skirts |
x
|
x
|
x
|
x
|
x
|
| High-strength piston pins |
x
|
x
|
x
|
x
|
x
|
| Extreme Duty XR wrist pins |
|
|
|
|
x
|
| Horizontal Gas Ports enhance ring seal |
|
|
|
|
x
|
| Forged and machined in the USA |
x
|
x
|
x
|
x
|
x
|
|
Piston Specs
Engine Brand: Chevy
Engine Family: Small Block Chevy
Engine Size: 350
With/Without Rings: Without Rings
Cylinder Bore Size: 4.040 in , 102.535 mm
Ring Width: 5/64-5/64-3/16"
Compression Height: 1.260"
Pin Diameter: 0.927"
Connecting Rod Length: 6.000"
Crankshaft Stroke: 3.480"
Piston Series: E 4032 Alloy
Alloy: 4032 Alloy
Cylinder Head: SBC 23 Degree
TDC Assembly Height: 9.000"
Piston Top Aprox. Comp. Ratio:
-4cc Flat Top SBC 23 Degree
| Chamber | Comp Ratio |
|---|
| 58 | 11.38 to 1 |
| 64 | 10.58 to 1 |
| 70 | 9.87 to 1 |
Download Piston Instructions
Piston Series Comparison Chart
| Features: |
Piston Series |
|
| |
E series
|
SX series |
1-FX series |
2-FX series |
3-FX series |
| Broached pin oiling slots |
x
|
x
|
|
|
|
| Drilled, forced wrist pin oiling |
|
x
|
x
|
x
|
x
|
| Forged drain-back windows |
x
|
|
|
|
|
| Drilled bottom ring land intersecting oil groove drain-backs |
|
x
|
x
|
x
|
x
|
| Slightly larger, deeper valve reliefs than OEM |
x
|
|
|
|
|
| CNC machined valve reliefs for moderate performance heads and cam combinations |
|
x
|
|
|
|
| Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations |
|
|
x
|
x
|
x
|
| Premium Aircraft spec. 4032 low expansion alloy |
x
|
x
|
x
|
|
|
| Premium Aircraft spec. 2618 alloy |
|
|
|
x
|
x
|
| Blower, Turbo, NOS ready |
|
x
|
x
|
x
|
x
|
| Brushed piston crown |
|
|
x
|
x
|
x
|
| Turned dishs |
x
|
x
|
|
|
|
| Max Quench milled dishs |
|
|
x
|
x
|
x
|
| Additional CNC milling for weight reduction in non-critical areas |
|
|
x
|
x
|
x
|
| Patented “X Groove” skirt for superior cylinder and ring life |
|
|
x
|
x
|
x
|
| Thinner/shallower Ring grooves for maximum ring seal and land strength |
|
|
x
|
x
|
x
|
| Low volume contact reduction grooves |
|
|
x
|
x
|
x
|
| 2nd ring land accumulator groove prevents ring flutter |
|
|
x
|
x
|
x
|
| 3rd ring land scraper relief |
|
|
x
|
x
|
x
|
| Oil ring groove relief reservoir |
|
|
x
|
x
|
x
|
| Inner and outer pin boss weight reduction radiusing |
|
|
x
|
x
|
x
|
| Tighter control of crown thickness yields consistently lighter parts |
|
|
x
|
x
|
x
|
| Dynamic skirt milling controls skirt thickness for consistently lighter parts |
|
|
x
|
x
|
x
|
| Diamond-turned high strength skirts |
x
|
x
|
x
|
x
|
x
|
| High-strength piston pins |
x
|
x
|
x
|
x
|
x
|
| Extreme Duty XR wrist pins |
|
|
|
|
x
|
| Horizontal Gas Ports enhance ring seal |
|
|
|
|
x
|
| Forged and machined in the USA |
x
|
x
|
x
|
x
|
x
|
|
