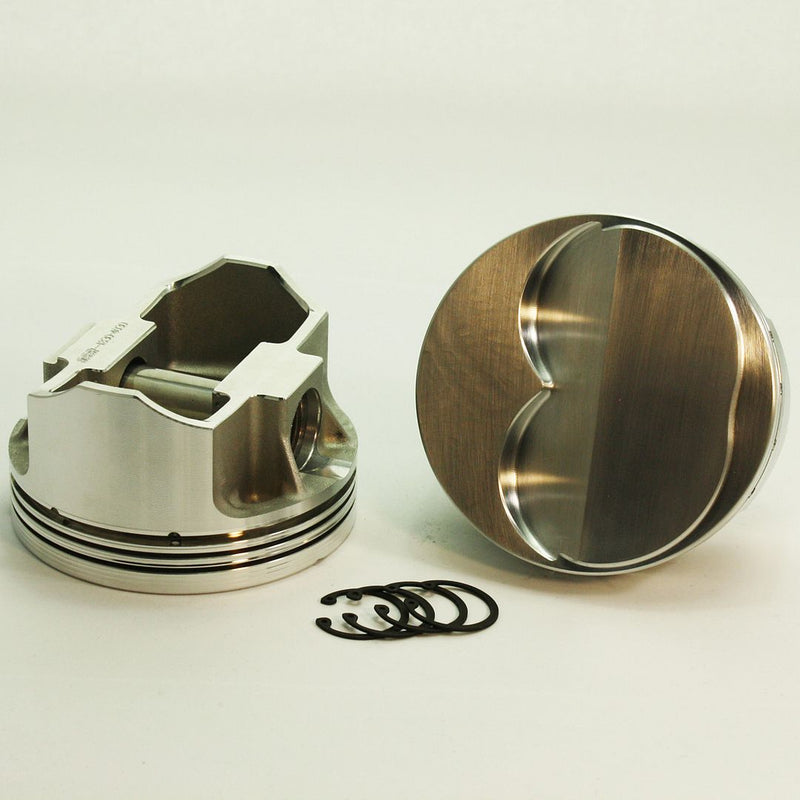

8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
Load image into Gallery viewer, 8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
Load image into Gallery viewer, 8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
Load image into Gallery viewer, 8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
Load image into Gallery viewer, 8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
Load image into Gallery viewer, 8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"
Load image into Gallery viewer, 8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.425"

PART #: 8127-4060

8127-4060 383 Small Block Chevy SX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore Pin Dia.: 0.927" Comp Height: 1.425"

$599.95
$599.95
Sale Sold out
/
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

Piston & Ring Kit Option:
This is a pre order item. We will ship it when it comes in stock.

388 Small Block Chevy, SX, Comp Height: 1.425, +4cc Dome Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 5.7, Approx Comp Ratio: 58cc-13.73, 64cc-12.6, 70cc-11.66


Engine Brand: Chevy

Engine Family: Small Block Chevy

Engine Size: 383

With/Without Rings: Without Rings

Cylinder Bore Size: 4.060 in , 103.043 mm

Ring Width: 1/16-1/16-3/16"

Compression Height: 1.425"

Pin Diameter: 0.927"

Connecting Rod Length: 5.700"

Crankshaft Stroke: 3.750"

Piston Series: SX 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBC 23 Degree

TDC Assembly Height: 9.000"

Piston Top Aprox. Comp. Ratio:

+4cc Dome Top SBC 23 Degree
ChamberComp Ratio
5813.73 to 1
6412.6 to 1
7011.66 to 1

Download Piston Instructions


Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Piston Specs

Engine Brand: Chevy

Engine Family: Small Block Chevy

Engine Size: 383

With/Without Rings: Without Rings

Cylinder Bore Size: 4.060 in , 103.043 mm

Ring Width: 1/16-1/16-3/16"

Compression Height: 1.425"

Pin Diameter: 0.927"

Connecting Rod Length: 5.700"

Crankshaft Stroke: 3.750"

Piston Series: SX 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBC 23 Degree

TDC Assembly Height: 9.000"

Piston Top Aprox. Comp. Ratio:

+4cc Dome Top SBC 23 Degree
ChamberComp Ratio
5813.73 to 1
6412.6 to 1
7011.66 to 1

Download Piston Instructions
