PART #: 8126-4040

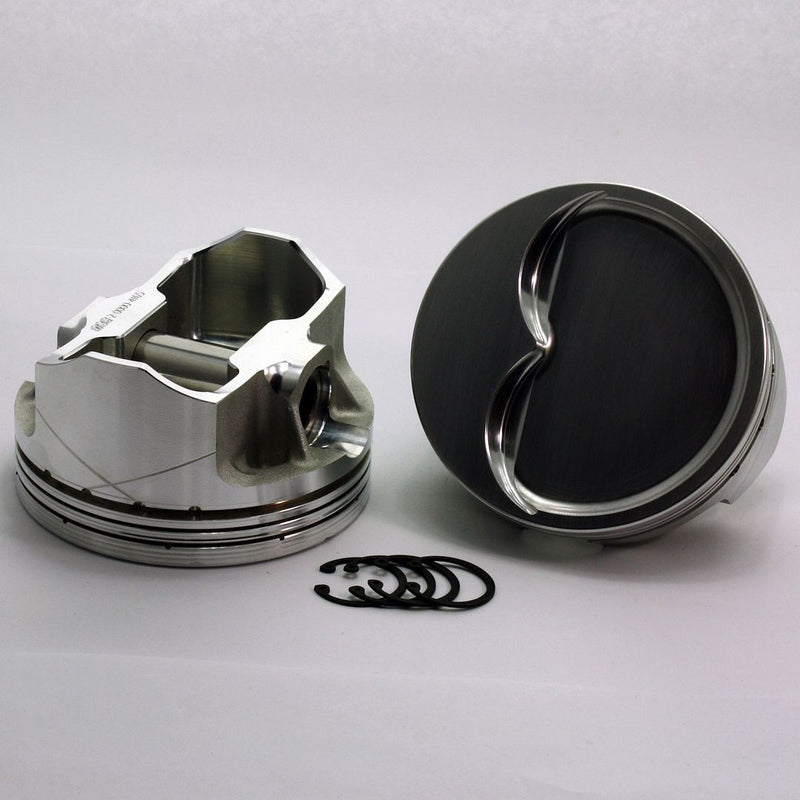

8126-4040 383 Small Block Chevy SX Series -28cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore Pin Dia.: 0.927" Comp Height: 1.425"

Regular price $559.95
Sale price $559.95 Regular price
Sale Sold out
Unit price
/per
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

Piston & Ring Kit Option:
This is a pre order item. We will ship it when it comes in stock.

385 Small Block Chevy, SX, Comp Height: 1.425, -28cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.750", ROD: 5.7, Approx Comp Ratio: 58cc-9.36, 64cc-8.85, 70cc-8.42


Engine Brand: Chevy

Engine Family: Small Block Chevy

Engine Size: 383

With/Without Rings: Without Rings

Cylinder Bore Size: 4.040 in , 102.535 mm

Ring Width: 1/16-1/16-3/16"

Compression Height: 1.425"

Pin Diameter: 0.927"

Connecting Rod Length: 5.700"

Crankshaft Stroke: 3.750"

Piston Series: SX 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBC 23 Degree

TDC Assembly Height: 9.000"

Piston Top Aprox. Comp. Ratio:

-28cc Dish Top SBC 23 Degree
ChamberComp Ratio
589.36 to 1
648.85 to 1
708.42 to 1

Download Piston Instructions


Features: Piston Series


E series

 SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x







Drilled, forced wrist pin oiling



x

x

x

x

Forged drain-back windows

x









Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x

Slightly larger, deeper valve reliefs than OEM

x









CNC machined valve reliefs for moderate performance heads and cam combinations



x

Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x

Premium Aircraft spec. 4032 low expansion alloy

x

x

x





Premium Aircraft spec. 2618 alloy







x

x

Blower, Turbo, NOS ready



x

x

x

x

Brushed piston crown





x

x

x

Turned dishs

x

x







Max Quench milled dishs





x

x

x

Additional CNC milling for weight reduction in non-critical areas





x

x

x

Patented “X Groove” skirt for superior cylinder and ring life





x

x

x

Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x

Low volume contact reduction grooves

x

x

x

2nd ring land accumulator groove prevents ring flutter

x

x

x

3rd ring land scraper relief

x

x

x

Oil ring groove relief reservoir

x

x

x

Inner and outer pin boss weight reduction radiusing

x

x

x

Tighter control of crown thickness yields consistently lighter parts

x

x

x

Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x

Diamond-turned high strength skirts

x

x

x

x

x

High-strength piston pins

x

x

x

x

x

Extreme Duty XR wrist pins



x

Horizontal Gas Ports enhance ring seal

x

Forged and machined in the USA

x

x

x

x

x

Piston Specs

Engine Brand: Chevy

Engine Family: Small Block Chevy

Engine Size: 383

With/Without Rings: Without Rings

Cylinder Bore Size: 4.040 in , 102.535 mm

Ring Width: 1/16-1/16-3/16"

Compression Height: 1.425"

Pin Diameter: 0.927"

Connecting Rod Length: 5.700"

Crankshaft Stroke: 3.750"

Piston Series: SX 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBC 23 Degree

TDC Assembly Height: 9.000"

Piston Top Aprox. Comp. Ratio:

-28cc Dish Top SBC 23 Degree
ChamberComp Ratio
589.36 to 1
648.85 to 1
708.42 to 1

Download Piston Instructions
