late Model Mustang

Small Block Ford 351W

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Ring Groove Width Show all Ring Groove Width

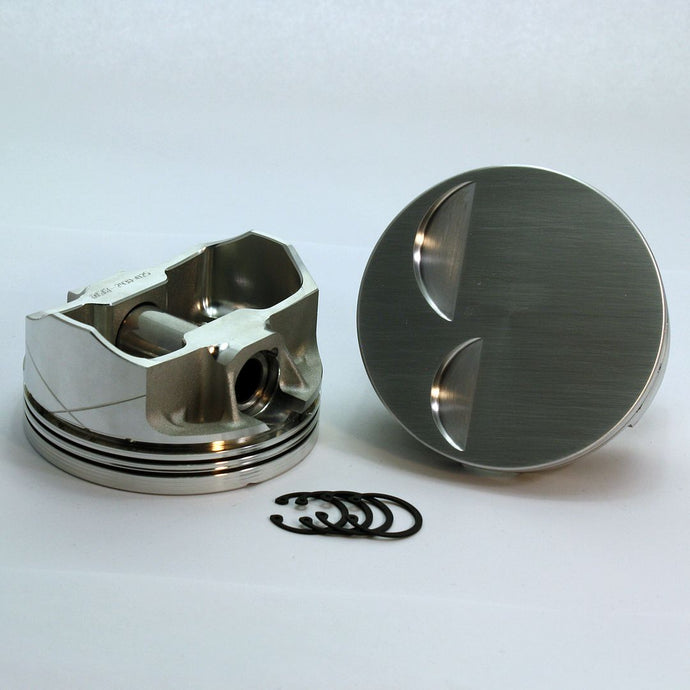

3520-4060 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6 3520-4060 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
311 Small Block Ford 351W, FX, Comp Height: 1.6, -3cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.09, Approx Comp Ratio: 58cc-10.17, 64cc-9.43, 70cc-8.82
Choose Options
3520-4040 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6 3520-4040 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
308 Small Block Ford 351W, FX, Comp Height: 1.6, -3cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.09, Approx Comp Ratio: 58cc-10.1, 64cc-9.37, 70cc-8.75
Choose Options
3520-4030 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6 3520-4030 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
306 Small Block Ford 351W, FX, Comp Height: 1.6, -3cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.09, Approx Comp Ratio: 58cc-10.04, 64cc-9.32, 70cc-8.71
Choose Options
3520-4000 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6 3520-4000 393W - 5.8 Clevor Stroker Small Block Ford 351W FX Series -3cc Flat Top 351 Cleveland \ Boss Open & Closed Chamber Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
302 Small Block Ford 351W, FX, Comp Height: 1.6, -3cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.09, Approx Comp Ratio: 58cc-9.95, 64cc-9.22, 70cc-8.61
Choose Options
3516-4060 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6 3516-4060 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
399 Small Block Ford 351W, FX, Comp Height: 1.6, +6cc Dome Top, PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-14.52, 64cc-13.28, 70cc-12.28
Choose Options
3516-4040 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6 3516-4040 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
395 Small Block Ford 351W, FX, Comp Height: 1.6, +6cc Dome Top, PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-14.38, 64cc-13.19, 70cc-12.17
Choose Options
3516-4030 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6 3516-4030 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
393 Small Block Ford 351W, FX, Comp Height: 1.6, +6cc Dome Top, PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-14.35, 64cc-13.13, 70cc-12.11
Choose Options
3516-4000 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6 3516-4000 393W - 5.8 Stroker Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
387 Small Block Ford 351W, FX, Comp Height: 1.6, +6cc Dome Top, PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-14.15, 64cc-12.97, 70cc-11.97
Choose Options
3502-4060 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6 3502-4060 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
399 Small Block Ford 351W, FX, Comp Height: 1.6, -2cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.93, 64cc-11.96, 70cc-11.16
Choose Options
3502-4040 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6 3502-4040 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
395 Small Block Ford 351W, FX, Comp Height: 1.6, -2cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.84, 64cc-11.88, 70cc-11.06
Choose Options
3502-4030 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6 3502-4030 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
393 Small Block Ford 351W, FX, Comp Height: 1.6, -2cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.78, 64cc-11.82, 70cc-11.03
Choose Options
3502-4000 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6 3502-4000 393W - 5.8 Stroker Small Block Ford 351W FX Series -2cc Flat Top SBF Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
387 Small Block Ford 351W, FX, Comp Height: 1.6, -2cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.63, 64cc-11.68, 70cc-10.87
Choose Options
3501-4060 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6 3501-4060 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
399 Small Block Ford 351W, FX, Comp Height: 1.6, -5cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.44, 64cc-11.54, 70cc-10.8
Choose Options
3501-4040 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6 3501-4040 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
395 Small Block Ford 351W, FX, Comp Height: 1.6, -5cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.32, 64cc-11.46, 70cc-10.7
Choose Options
3501-4030 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6 3501-4030 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
393 Small Block Ford 351W, FX, Comp Height: 1.6, -5cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.29, 64cc-11.41, 70cc-10.65
Choose Options
3501-4000 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6 3501-4000 393W - 5.8 Stroker Small Block Ford 351W FX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.6
from $719.95
from $719.95
387 Small Block Ford 351W, FX, Comp Height: 1.6, -5cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.850", ROD: 5.956, Approx Comp Ratio: 58cc-12.12, 64cc-11.27, 70cc-10.52
Choose Options
