Small Block Chevy engine

Small Block Chevy

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
8103-4060 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56 8103-4060 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
360 Small Block Chevy, SX, Comp Height: 1.56, -13cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.28, 64cc-9.62, 70cc-9.06
Choose Options
8103-4040 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56 8103-4040 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
357 Small Block Chevy, SX, Comp Height: 1.56, -13cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.2, 64cc-9.57, 70cc-9
Choose Options
8103-4030 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56 8103-4030 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
355 Small Block Chevy, SX, Comp Height: 1.56, -13cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.17, 64cc-9.52, 70cc-8.97
Choose Options
8103-4000 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56 8103-4000 350 Small Block Chevy SX Series -13cc Dish Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
350 Small Block Chevy, SX, Comp Height: 1.56, -13cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-10.04, 64cc-9.41, 70cc-8.85
Choose Options
8100-4185 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.56 8100-4185 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
383 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.91, 64cc-11.06, 70cc-10.33
Choose Options
8100-4165 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.56 8100-4165 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
379 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.79, 64cc-10.95, 70cc-10.25
Choose Options
8100-4155 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.56 8100-4155 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
377 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.73, 64cc-10.92, 70cc-10.2
Choose Options
8100-4125 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.56 8100-4125 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
372 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.62, 64cc-10.81, 70cc-10.1
Choose Options
8100-4040 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56 8100-4040 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
357 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.24, 64cc-10.45, 70cc-9.77
Choose Options
8100-4060 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56 8100-4060 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
360 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.32, 64cc-10.51, 70cc-9.84
Choose Options
8100-4030 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56 8100-4030 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
355 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.2, 64cc-10.4, 70cc-9.72
Choose Options
8100-4000 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56 8100-4000 350 Small Block Chevy SX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.56
from $559.95
from $559.95
350 Small Block Chevy, SX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.06, 64cc-10.29, 70cc-9.61
Choose Options

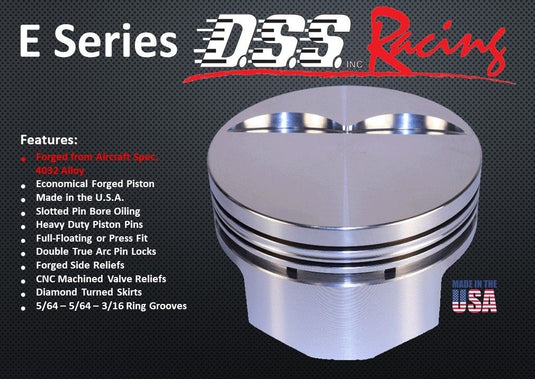

8717-4060 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.125 8717-4060 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.125
from $439.95
from $439.95
388 Small Block Chevy, E, Comp Height: 1.125, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.4, 64cc-9.79, 70cc-9.23
Choose Options
8717-4040 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.125 8717-4040 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.125
from $439.95
from $439.95
385 Small Block Chevy, E, Comp Height: 1.125, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.34, 64cc-9.72, 70cc-9.18
Choose Options
8717-4030 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.125 8717-4030 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.125
from $439.95
from $439.95
383 Small Block Chevy, E, Comp Height: 1.125, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.3, 64cc-9.69, 70cc-9.14
Choose Options
8717-4000 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.125 8717-4000 383 Small Block Chevy E Series -18cc Dish Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.125
from $439.95
from $439.95
377 Small Block Chevy, E, Comp Height: 1.125, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.750", ROD: 6, Approx Comp Ratio: 58cc-10.17, 64cc-9.55, 70cc-9.03
Choose Options
