6171-4040 301 Pontiac 301 FX Series -7cc Dish Top No Notch Pontiac 301 Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.57"

Load image into Gallery viewer, 6171-4040 301 Pontiac 301 FX Series -7cc Dish Top No Notch Pontiac 301 Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.57"

PART #: 1-6171-4040

6171-4040 301 Pontiac 301 FX Series -7cc Dish Top No Notch Pontiac 301 Forged Piston Set 4.040 inch bore Pin Dia.: 0.927" Comp Height: 1.57"

Name: 6171-4040 301 Pontiac 301 FX Series -7cc Dish Top No Notch Pontiac 301 Forged Piston Set 4.040 inch bore Pin Dia.: 0.927" Comp Height: 1.57"
Brand: DSS RACING
SKU: 1-6171-4040
Price: 669.95 USD
Availability: InStock

$669.95

Sale Sold out

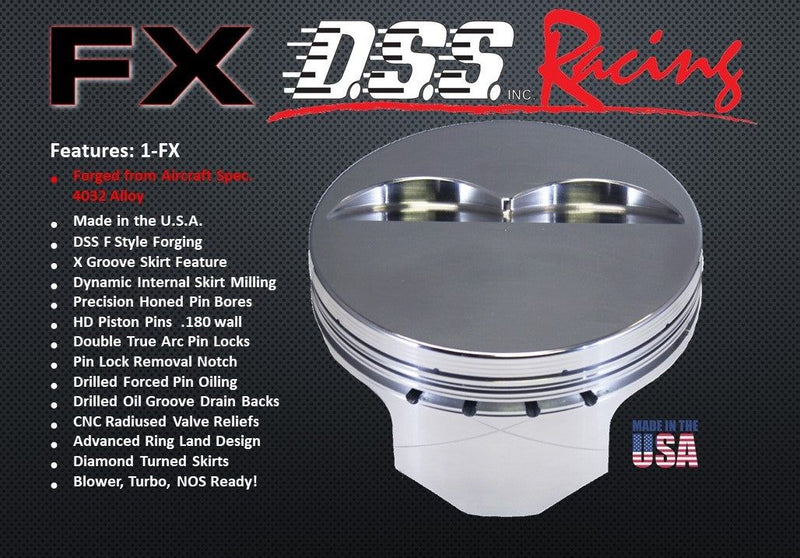

FX-1 4032 Alloy Sold out

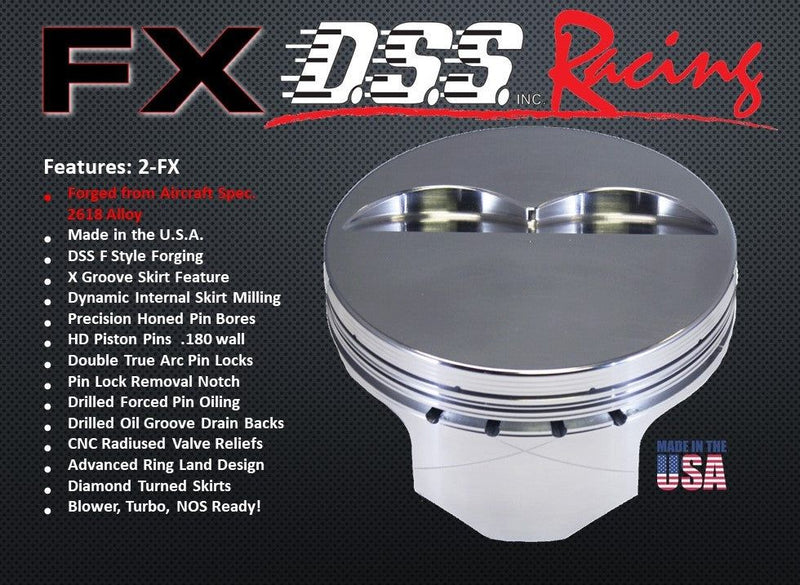

FX-2 2618 Alloy Sold out

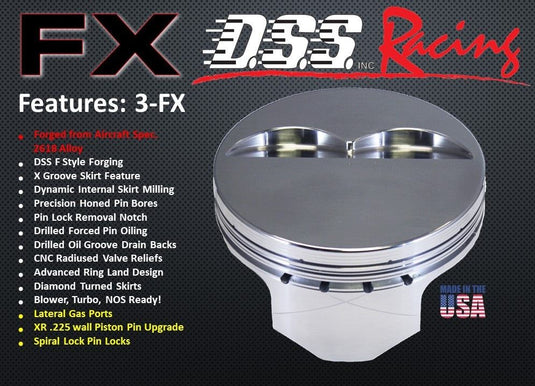

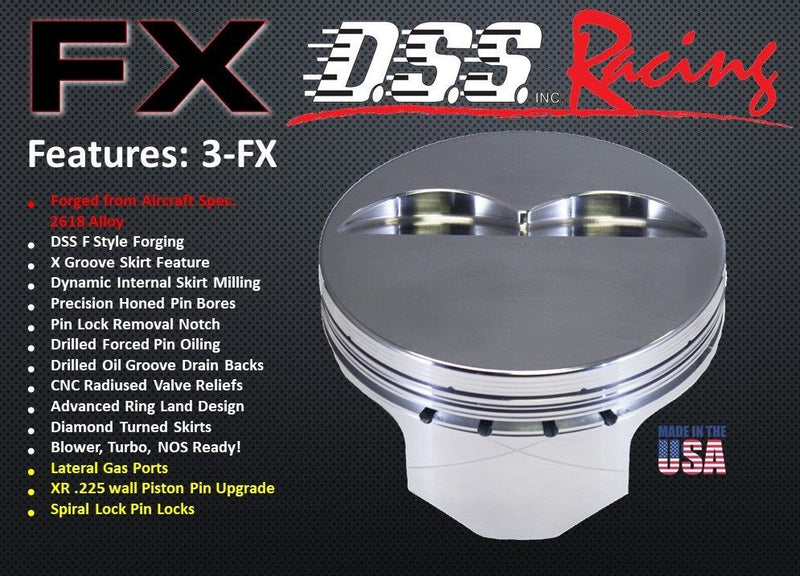

FX-3 2618 Alloy with Lateral Gas Ports - XR .225 Wall Pin Upgrade - Spiro Locs Sold out

Pistons - Pins and Locs Without Rings Sold out

Pistons - Pins - Locs With DSS Racing Rings in a Kit Sold out

Ships in 1 - 8 days

Forged Pistons Made in the USA!

Secure Payment

Quantity must be 1 or more

308 Pontiac 301, FX, Comp Height: 1.57, -7cc Dish Top No Notch, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6.05, Approx Comp Ratio: 65cc-8.84, 72cc-8.22, 78cc-7.75

Piston Specs
Piston Series Comparison Chart

Piston Top Aprox. Comp. Ratio:

-7cc Dish Top No Notch Pontiac 301
Chamber	Comp Ratio
65	8.84 to 1
72	8.22 to 1
78	7.75 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Pontiac

Engine Family: Pontiac 301

Engine Size: 301

Cylinder Bore Size: 4.040 in , 102.535 mm

Ring Groove Width: 1.2/1.2/3MM

Compression Height: 1.570"

Pin Diameter: 0.927"

Connecting Rod Length: 6.050"

Crankshaft Stroke: 3.000"

Cylinder Head: Pontiac 301

TDC Assembly Height: 9.120" ( Zero Deck Height )

Download Piston Instructions

Features:	Piston Series
Features:	Piston Series
	E series	SX series	1-FX series	2-FX series	3-FX series
Broached pin oiling slots	x	x
Drilled, forced wrist pin oiling		x	x	x	x
Forged drain-back windows	x
Drilled bottom ring land intersecting oil groove drain-backs		x	x	x	x
Slightly larger, deeper valve reliefs than OEM	x
CNC machined valve reliefs for moderate performance heads and cam combinations		x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations			x	x	x
Premium Aircraft spec. 4032 low expansion alloy	x	x	x
Premium Aircraft spec. 2618 alloy				x	x
Blower, Turbo, NOS ready		x	x	x	x
Brushed piston crown			x	x	x
Turned dishs	x	x
Max Quench milled dishs			x	x	x
Additional CNC milling for weight reduction in non-critical areas			x	x	x
Patented “X Groove” skirt for superior cylinder and ring life			x	x	x
Thinner/shallower Ring grooves for maximum ring seal and land strength			x	x	x
Low volume contact reduction grooves			x	x	x
2nd ring land accumulator groove prevents ring flutter			x	x	x
3rd ring land scraper relief			x	x	x
Oil ring groove relief reservoir			x	x	x
Inner and outer pin boss weight reduction radiusing			x	x	x
Tighter control of crown thickness yields consistently lighter parts			x	x	x
Dynamic skirt milling controls skirt thickness for consistently lighter parts			x	x	x
Diamond-turned high strength skirts	x	x	x	x	x
High-strength piston pins	x	x	x	x	x
Extreme Duty XR wrist pins					x
Horizontal Gas Ports enhance ring seal					x
Forged and machined in the USA	x	x	x	x	x
