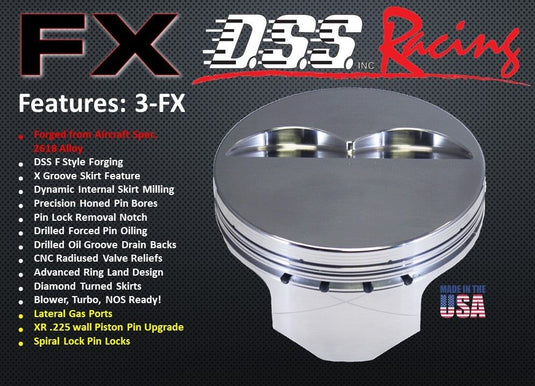

2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"

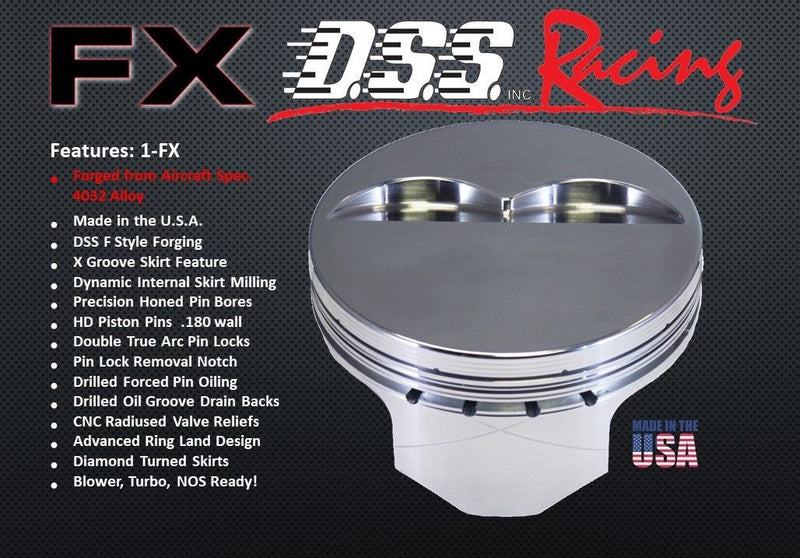

Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"

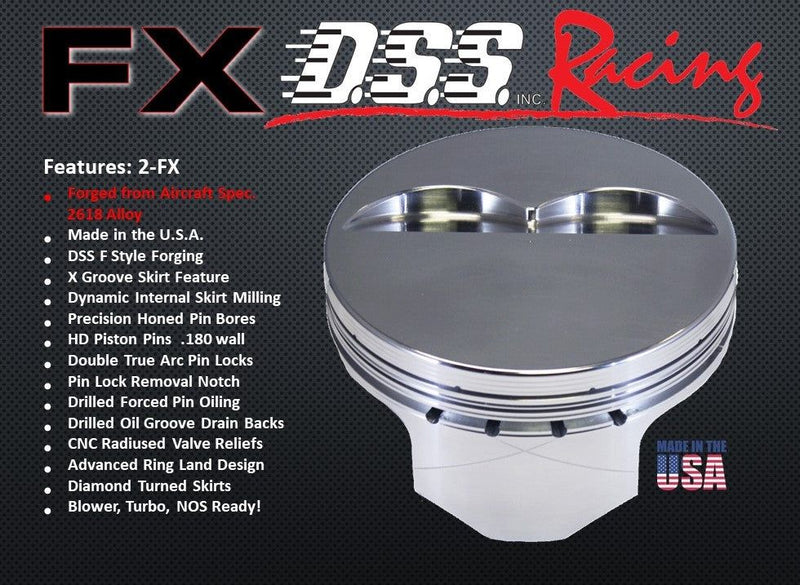

Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"

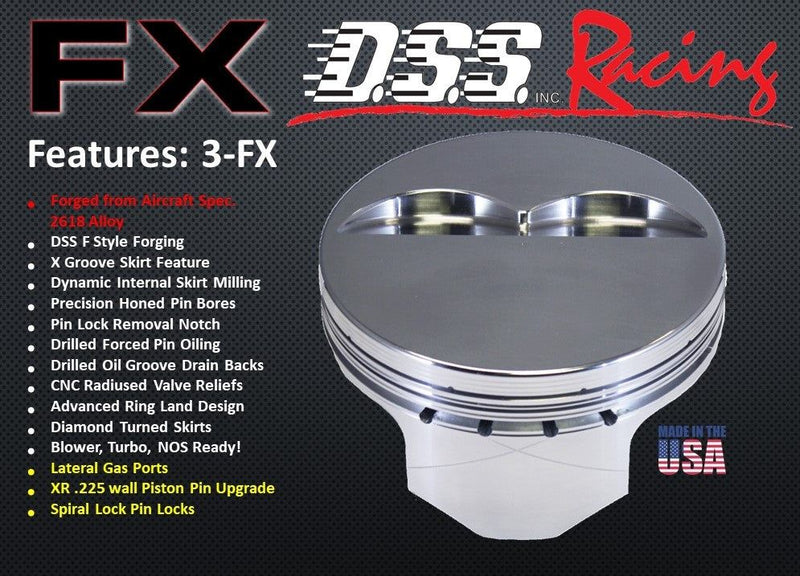

Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"
Load image into Gallery viewer, 2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.33"

PART #: 1-2751-4165

2751-4165 LT1 6.2 Gen 5 LT Direct Injection FX Series -2cc Dome Top LT Direct Injection Forged Piston Set 4.165 inch bore Pin Dia.: 0.943" Comp Height: 1.33"

$719.95
$719.95
Sale Sold out
/
Piston Series Option:
Piston Ring Kit Option:
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

This is a pre order item. We will ship it when it comes in stock.

395 Gen 5 LT Direct Injection, FX, Comp Height: 1.33, -2cc Dome Top, PIN: .943", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.622", ROD: 6.098, Approx Comp Ratio: 59cc-12.56, 66cc-11.53, 70cc-10.99


Piston Top Aprox. Comp. Ratio:

-2cc Dome Top LT Direct Injection
ChamberComp Ratio
5912.56 to 1
6611.53 to 1
7010.99 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Chevy

Engine Family: Gen 5 LT Direct Injection

Engine Size: LT1 6.2

Cylinder Bore Size: 4.165 in , 105.708 mm

Ring Groove Width: 1.2/1.2/3MM

Compression Height: 1.330"

Pin Diameter: 0.943"

Connecting Rod Length: 6.098"

Crankshaft Stroke: 3.622"

Cylinder Head: LT Direct Injection

TDC Assembly Height: 9.239" ( Zero Deck Height )

Download Piston Instructions


Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Piston Specs

Piston Top Aprox. Comp. Ratio:

-2cc Dome Top LT Direct Injection
ChamberComp Ratio
5912.56 to 1
6611.53 to 1
7010.99 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Chevy

Engine Family: Gen 5 LT Direct Injection

Engine Size: LT1 6.2

Cylinder Bore Size: 4.165 in , 105.708 mm

Ring Groove Width: 1.2/1.2/3MM

Compression Height: 1.330"

Pin Diameter: 0.943"

Connecting Rod Length: 6.098"

Crankshaft Stroke: 3.622"

Cylinder Head: LT Direct Injection

TDC Assembly Height: 9.239" ( Zero Deck Height )

Download Piston Instructions
