Piston Top Aprox. Comp. Ratio:
-4cc Flat Top Gen I & Gen II Coyote
| Chamber | Comp Ratio |
|---|
| 52 | 10.86 to 1 |
| 57 | 10.12 to 1 |
| 62 | 9.5 to 1 |
For accurate Comp Ratio info use the calculator below.
Engine Brand: Ford
Engine Family: Ford Coyote
Engine Size: 5.0
Cylinder Bore Size: 3.630 in , 92.129 mm
Ring Groove Width: 1.5/1.5/3MM
Compression Height: 1.170"
Pin Diameter: 0.866"
Connecting Rod Length: 5.933"
Crankshaft Stroke: 3.649"
Cylinder Head: Gen I & Gen II Coyote
TDC Assembly Height: 8.928" ( Zero Deck Height )
Download Piston Instructions
| Features: |
Piston Series |
|
| |
E series
|
SX series |
1-FX series |

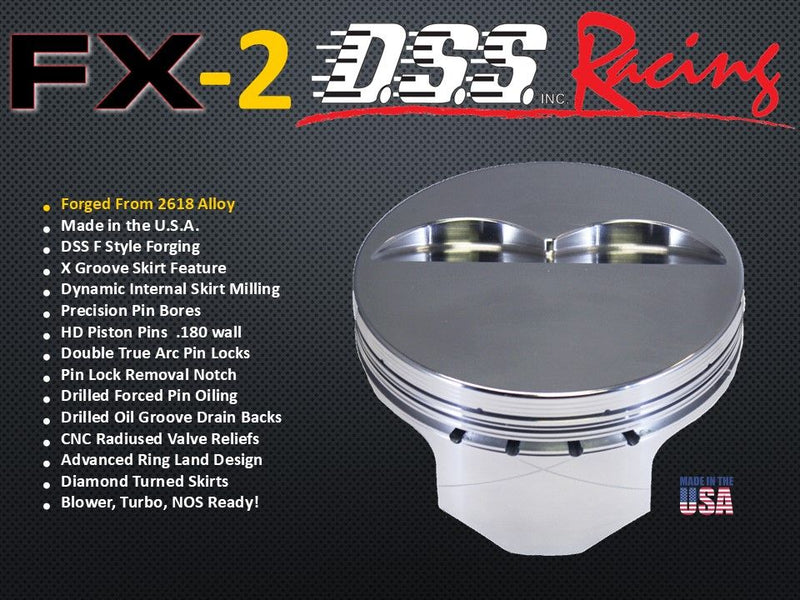

2-FX series |

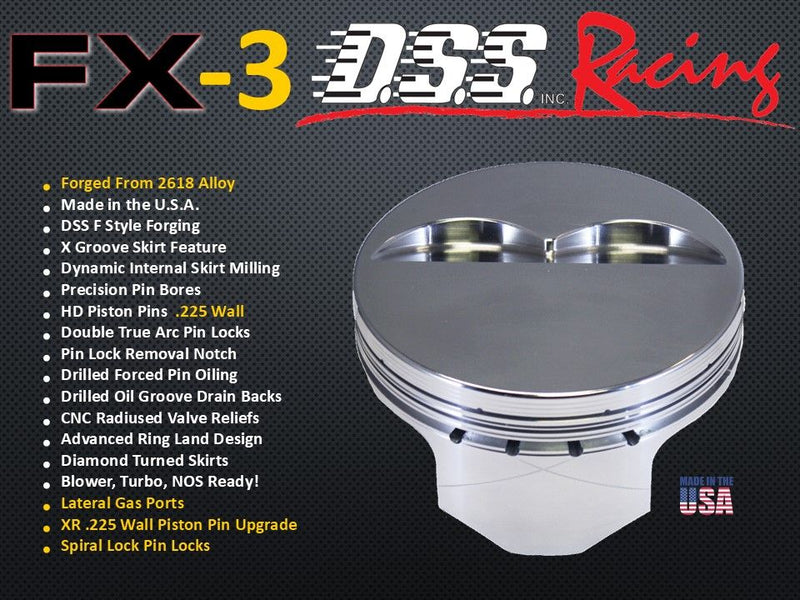

3-FX series |
| Broached pin oiling slots |
x
|
x
|
|
|
|
| Drilled, forced wrist pin oiling |
|
x
|
x
|
x
|
x
|
| Forged drain-back windows |
x
|
|
|
|
|
| Drilled bottom ring land intersecting oil groove drain-backs |
|
x
|
x
|
x
|
x
|
| Slightly larger, deeper valve reliefs than OEM |
x
|
|
|
|
|
| CNC machined valve reliefs for moderate performance heads and cam combinations |
|
x
|
|
|
|
| Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations |
|
|
x
|
x
|
x
|
| Premium Aircraft spec. 4032 low expansion alloy |
x
|
x
|
x
|
|
|
| Premium Aircraft spec. 2618 alloy |
|
|
|
x
|
x
|
| Blower, Turbo, NOS ready |
|
x
|
x
|
x
|
x
|
| Brushed piston crown |
|
|
x
|
x
|
x
|
| Turned dishs |
x
|
x
|
|
|
|
| Max Quench milled dishs |
|
|
x
|
x
|
x
|
| Additional CNC milling for weight reduction in non-critical areas |
|
|
x
|
x
|
x
|
| Patented “X Groove” skirt for superior cylinder and ring life |
|
|
x
|
x
|
x
|
| Thinner/shallower Ring grooves for maximum ring seal and land strength |
|
|
x
|
x
|
x
|
| Low volume contact reduction grooves |
|
|
x
|
x
|
x
|
| 2nd ring land accumulator groove prevents ring flutter |
|
|
x
|
x
|
x
|
| 3rd ring land scraper relief |
|
|
x
|
x
|
x
|
| Oil ring groove relief reservoir |
|
|
x
|
x
|
x
|
| Inner and outer pin boss weight reduction radiusing |
|
|
x
|
x
|
x
|
| Tighter control of crown thickness yields consistently lighter parts |
|
|
x
|
x
|
x
|
| Dynamic skirt milling controls skirt thickness for consistently lighter parts |
|
|
x
|
x
|
x
|
| Diamond-turned high strength skirts |
x
|
x
|
x
|
x
|
x
|
| High-strength piston pins |
x
|
x
|
x
|
x
|
x
|
| Extreme Duty XR wrist pins |
|
|
|
|
x
|
| Horizontal Gas Ports enhance ring seal |
|
|
|
|
x
|
| Forged and machined in the USA |
x
|
x
|
x
|
x
|
x
|
|
Piston Specs
Piston Top Aprox. Comp. Ratio:
-4cc Flat Top Gen I & Gen II Coyote
| Chamber | Comp Ratio |
|---|
| 52 | 10.86 to 1 |
| 57 | 10.12 to 1 |
| 62 | 9.5 to 1 |
For accurate Comp Ratio info use the calculator below.
Engine Brand: Ford
Engine Family: Ford Coyote
Engine Size: 5.0
Cylinder Bore Size: 3.630 in , 92.129 mm
Ring Groove Width: 1.5/1.5/3MM
Compression Height: 1.170"
Pin Diameter: 0.866"
Connecting Rod Length: 5.933"
Crankshaft Stroke: 3.649"
Cylinder Head: Gen I & Gen II Coyote
TDC Assembly Height: 8.928" ( Zero Deck Height )
Download Piston Instructions
Piston Series Comparison Chart
| Features: |
Piston Series |
|
| |
E series
|
SX series |
1-FX series |
2-FX series |
3-FX series |
| Broached pin oiling slots |
x
|
x
|
|
|
|
| Drilled, forced wrist pin oiling |
|
x
|
x
|
x
|
x
|
| Forged drain-back windows |
x
|
|
|
|
|
| Drilled bottom ring land intersecting oil groove drain-backs |
|
x
|
x
|
x
|
x
|
| Slightly larger, deeper valve reliefs than OEM |
x
|
|
|
|
|
| CNC machined valve reliefs for moderate performance heads and cam combinations |
|
x
|
|
|
|
| Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations |
|
|
x
|
x
|
x
|
| Premium Aircraft spec. 4032 low expansion alloy |
x
|
x
|
x
|
|
|
| Premium Aircraft spec. 2618 alloy |
|
|
|
x
|
x
|
| Blower, Turbo, NOS ready |
|
x
|
x
|
x
|
x
|
| Brushed piston crown |
|
|
x
|
x
|
x
|
| Turned dishs |
x
|
x
|
|
|
|
| Max Quench milled dishs |
|
|
x
|
x
|
x
|
| Additional CNC milling for weight reduction in non-critical areas |
|
|
x
|
x
|
x
|
| Patented “X Groove” skirt for superior cylinder and ring life |
|
|
x
|
x
|
x
|
| Thinner/shallower Ring grooves for maximum ring seal and land strength |
|
|
x
|
x
|
x
|
| Low volume contact reduction grooves |
|
|
x
|
x
|
x
|
| 2nd ring land accumulator groove prevents ring flutter |
|
|
x
|
x
|
x
|
| 3rd ring land scraper relief |
|
|
x
|
x
|
x
|
| Oil ring groove relief reservoir |
|
|
x
|
x
|
x
|
| Inner and outer pin boss weight reduction radiusing |
|
|
x
|
x
|
x
|
| Tighter control of crown thickness yields consistently lighter parts |
|
|
x
|
x
|
x
|
| Dynamic skirt milling controls skirt thickness for consistently lighter parts |
|
|
x
|
x
|
x
|
| Diamond-turned high strength skirts |
x
|
x
|
x
|
x
|
x
|
| High-strength piston pins |
x
|
x
|
x
|
x
|
x
|
| Extreme Duty XR wrist pins |
|
|
|
|
x
|
| Horizontal Gas Ports enhance ring seal |
|
|
|
|
x
|
| Forged and machined in the USA |
x
|
x
|
x
|
x
|
x
|
|
