REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
4812-3720 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.720 inch bore COMP HEIGHT: 1.21 4812-3720 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.720 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
308 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-12.67, 50cc-11.49, 53cc-11
Choose Options
4812-3710 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.710 inch bore COMP HEIGHT: 1.21 4812-3710 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.710 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
306 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-12.59, 50cc-11.42, 53cc-10.94
Choose Options
4812-3705 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.705 inch bore COMP HEIGHT: 1.21 4812-3705 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.705 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
306 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-12.59, 50cc-11.42, 53cc-10.94
Choose Options
4812-3700 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.700 inch bore COMP HEIGHT: 1.21 4812-3700 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.700 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
305 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-12.55, 50cc-11.42, 53cc-10.9
Choose Options
4812-3592 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.592 inch bore COMP HEIGHT: 1.21 4812-3592 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.592 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
287 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-11.97, 50cc-10.86, 53cc-10.39
Choose Options
4812-3582 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.582 inch bore COMP HEIGHT: 1.21 4812-3582 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.582 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
286 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-11.93, 50cc-10.82, 53cc-10.36
Choose Options
4812-3572 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.572 inch bore COMP HEIGHT: 1.21 4812-3572 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.572 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
284 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-11.86, 50cc-10.78, 53cc-10.29
Choose Options
4812-3552 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.552 inch bore COMP HEIGHT: 1.21 4812-3552 4.6 Ford Modular FX Series -3cc Flat Top Modular 2V PI / Twisted Wedge Forged Piston Set 3.552 inch bore COMP HEIGHT: 1.21
from $669.95
from $669.95
281 Ford Modular, FX, Comp Height: 1.21, -3cc Flat Top , PIN: .866", Full-Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-11.77, 50cc-10.68, 53cc-10.22
Choose Options
4804-3592 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.592 inch bore COMP HEIGHT: 1.21 4804-3592 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.592 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
287 Ford Modular, SX, Comp Height: 1.21, -18cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-9.56, 50cc-8.88, 53cc-8.57
Choose Options
4804-3582 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.582 inch bore COMP HEIGHT: 1.21 4804-3582 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.582 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
286 Ford Modular, SX, Comp Height: 1.21, -18cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-9.53, 50cc-8.86, 53cc-8.54
Choose Options
4804-3572 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.572 inch bore COMP HEIGHT: 1.21 4804-3572 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.572 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
284 Ford Modular, SX, Comp Height: 1.21, -18cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-9.49, 50cc-8.8, 53cc-8.51
Choose Options
4804-3552 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.552 inch bore COMP HEIGHT: 1.21 4804-3552 4.6 Ford Modular SX Series -18cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.552 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
281 Ford Modular, SX, Comp Height: 1.21, -18cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-9.4, 50cc-8.72, 53cc-8.43
Choose Options

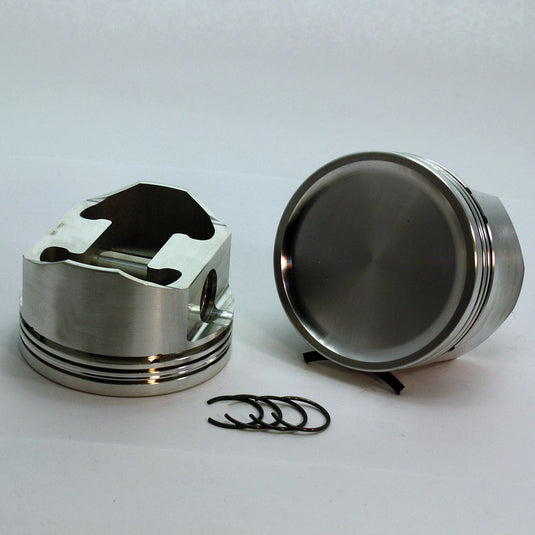

4802-3592 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.592 inch bore COMP HEIGHT: 1.21 4802-3592 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.592 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
287 Ford Modular, SX, Comp Height: 1.21, -10cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-10.7, 50cc-9.81, 53cc-9.44
Choose Options
4802-3582 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.582 inch bore COMP HEIGHT: 1.21 4802-3582 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.582 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
286 Ford Modular, SX, Comp Height: 1.21, -10cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-10.66, 50cc-9.81, 53cc-9.41
Choose Options
4802-3572 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.572 inch bore COMP HEIGHT: 1.21 4802-3572 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.572 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
284 Ford Modular, SX, Comp Height: 1.21, -10cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-10.59, 50cc-9.74, 53cc-9.35
Choose Options
4802-3552 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.552 inch bore COMP HEIGHT: 1.21 4802-3552 4.6 Ford Modular SX Series -10cc Dish Top No Notch Modular No Valve Relief Forged Piston Set 3.552 inch bore COMP HEIGHT: 1.21
from $559.95
from $559.95
281 Ford Modular, SX, Comp Height: 1.21, -10cc Dish Top No Notch, PIN: .866", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.543", ROD: 5.933, Approx Comp Ratio: 44cc-10.52, 50cc-9.65, 53cc-9.28
Choose Options
