Free Shipping on Piston Orders Over $500.00! Online Purchases Only. Limited Time Offer. Continental U.S. Only.

Wheels up Fox body Mustang with DSS Racing power.

Ford 427W 5.8 Stroker

STEP 1: Choose Cyl Bore Size Show all STEP 1: Choose Cyl Bore Size
STEP 2: Piston Series Show all STEP 2: Piston Series
STEP 3: Connecting Rod Length Show all STEP 3: Connecting Rod Length
STEP 4: Piston Pin Diameter Show all STEP 4: Piston Pin Diameter
STEP 5: Cylinder Head Type Show all STEP 5: Cylinder Head Type
STEP 6: Top - Comp. Ratio Show all STEP 6: Top - Comp. Ratio
Compression Height Show all Compression Height
Crankshaft Stroke Show all Crankshaft Stroke

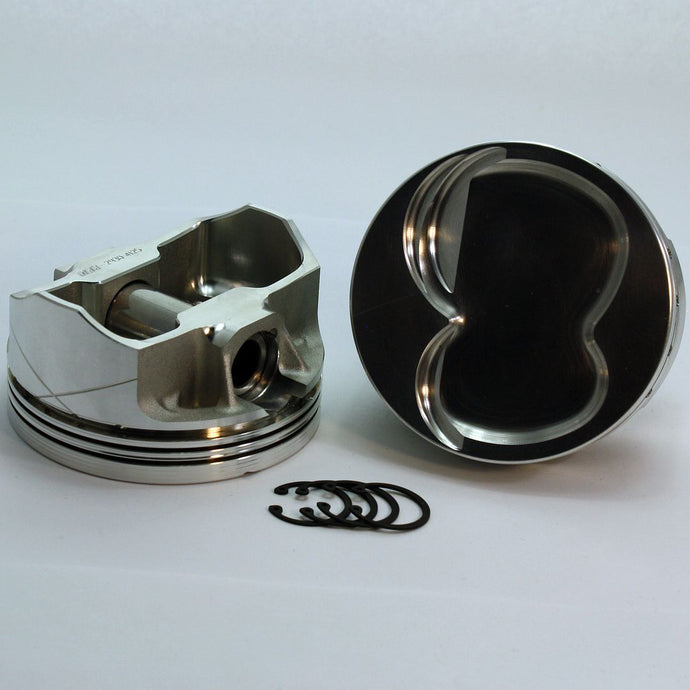

3208-4185 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.185 inch bore Pin Dia.: 0.927 3208-4185 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.185 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
459 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-12.05, 64cc-11.34, 70cc-10.69 *
Choose Options
3208-4165 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.165 inch bore Pin Dia.: 0.927 3208-4165 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.165 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
455 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.98, 64cc-11.25, 70cc-10.62 *
Choose Options
3208-4155 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.155 inch bore Pin Dia.: 0.927 3208-4155 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.155 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
452 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.91, 64cc-11.18, 70cc-10.56 *
Choose Options
3208-4125 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.125 inch bore Pin Dia.: 0.927 3208-4125 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.125 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
446 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.78, 64cc-11.06, 70cc-10.45 *
Choose Options
3208-4060 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore Pin Dia.: 0.927 3208-4060 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
432 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.47, 64cc-10.78, 70cc-10.17 *
Choose Options
3208-4040 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore Pin Dia.: 0.927 3208-4040 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
428 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.39, 64cc-10.69, 70cc-10.1 *
Choose Options
3208-4030 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore Pin Dia.: 0.927 3208-4030 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
426 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.34, 64cc-10.66, 70cc-10.06 *
Choose Options
3208-4000 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore Pin Dia.: 0.927 3208-4000 427W - 5.8 Stroker Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
419 Small Block Ford 351W, FX, Comp Height: 1.145, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-11.19, 64cc-10.51, 70cc-9.92 *
Choose Options

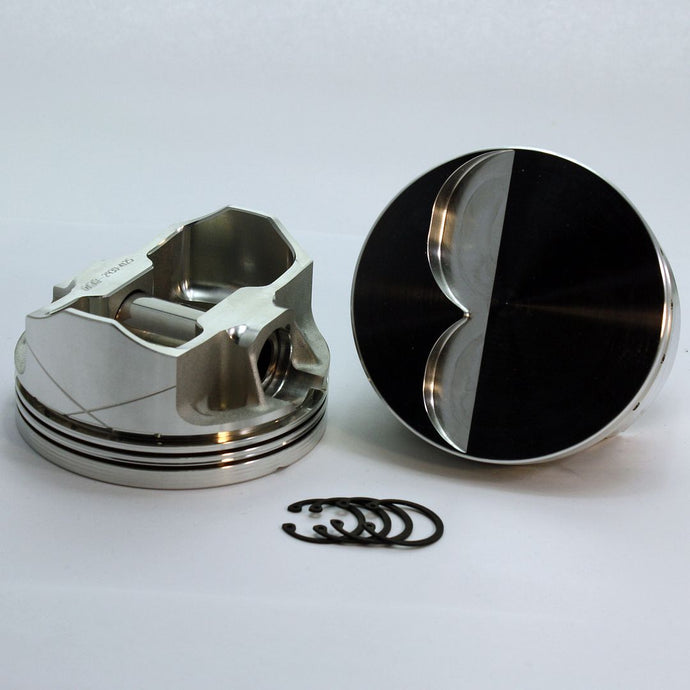

3200-4185 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.185 inch bore Pin Dia.: 0.927 3200-4185 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.185 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
459 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-14.25, 64cc-13.21, 70cc-12.32 *
Choose Options
3200-4155 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.155 inch bore Pin Dia.: 0.927 3200-4155 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.155 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
452 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-14.05, 64cc-13.05, 70cc-12.17 *
Choose Options
3200-4165 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.165 inch bore Pin Dia.: 0.927 3200-4165 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.165 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
455 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-14.14, 64cc-13.13, 70cc-12.24 *
Choose Options
3200-4125 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.125 inch bore Pin Dia.: 0.927 3200-4125 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.125 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
446 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-13.91, 64cc-12.91, 70cc-12.04 *
Choose Options
3200-4060 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore Pin Dia.: 0.927 3200-4060 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
432 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-13.56, 64cc-12.56, 70cc-11.74 *
Choose Options
3200-4000 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore Pin Dia.: 0.927 3200-4000 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
419 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-13.21, 64cc-12.26, 70cc-11.43 *
Choose Options
3200-4040 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore Pin Dia.: 0.927 3200-4040 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
428 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-13.44, 64cc-12.48, 70cc-11.64 *
Choose Options
3200-4030 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore Pin Dia.: 0.927 3200-4030 427W - 5.8 Stroker Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore Pin Dia.: 0.927
from $749.95
from $749.95
426 Small Block Ford 351W, FX, Comp Height: 1.145, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 4.170", ROD: 6.25, Approx Comp Ratio: 58cc-13.41, 64cc-12.43, 70cc-11.59 *
Choose Options
