PART #: 1-5001-4080

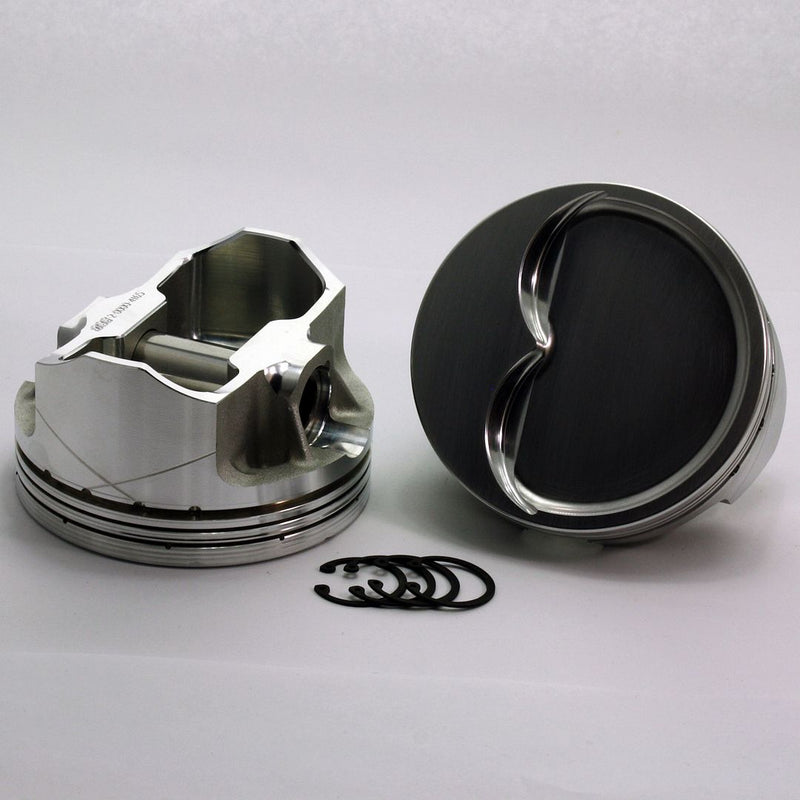

5001-4080 390 FE Ford FX Series -10cc Dish Top FE Ford Forged Piston Set 4.080 inch bore Pin Dia.: 0.975" Comp Height: 1.775"

Regular price $669.95
Sale price $669.95 Regular price
Sale Sold out
Unit price
/per
Piston Series Option:
Piston Ring Kit Option:
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

This is a pre order item. We will ship it when it comes in stock.

396 FE Ford, FX, Comp Height: 1.775, -10cc Dish Top, PIN: .975", Full-Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.784", ROD: 6.489, Approx Comp Ratio: 65cc-10.71, 72cc-9.95, 76cc-9.58


Piston Top Aprox. Comp. Ratio:

-10cc Dish Top FE Ford
ChamberComp Ratio
6510.71 to 1
729.95 to 1
769.58 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Ford

Engine Family: FE Ford

Engine Size: 390

Cylinder Bore Size: 4.080 in , 103.550 mm

Ring Groove Width: 1/16-1/16-3/16"

Compression Height: 1.775"

Pin Diameter: 0.975"

Connecting Rod Length: 6.489"

Crankshaft Stroke: 3.784"

Cylinder Head: FE Ford

TDC Assembly Height: 10.156" ( Zero Deck Height )

Download Piston Instructions


Features: Piston Series


E series

 SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x







Drilled, forced wrist pin oiling



x

x

x

x

Forged drain-back windows

x









Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x

Slightly larger, deeper valve reliefs than OEM

x









CNC machined valve reliefs for moderate performance heads and cam combinations



x

Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x

Premium Aircraft spec. 4032 low expansion alloy

x

x

x





Premium Aircraft spec. 2618 alloy







x

x

Blower, Turbo, NOS ready



x

x

x

x

Brushed piston crown





x

x

x

Turned dishs

x

x







Max Quench milled dishs





x

x

x

Additional CNC milling for weight reduction in non-critical areas





x

x

x

Patented “X Groove” skirt for superior cylinder and ring life





x

x

x

Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x

Low volume contact reduction grooves

x

x

x

2nd ring land accumulator groove prevents ring flutter

x

x

x

3rd ring land scraper relief

x

x

x

Oil ring groove relief reservoir

x

x

x

Inner and outer pin boss weight reduction radiusing

x

x

x

Tighter control of crown thickness yields consistently lighter parts

x

x

x

Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x

Diamond-turned high strength skirts

x

x

x

x

x

High-strength piston pins

x

x

x

x

x

Extreme Duty XR wrist pins



x

Horizontal Gas Ports enhance ring seal

x

Forged and machined in the USA

x

x

x

x

x

Piston Specs

Piston Top Aprox. Comp. Ratio:

-10cc Dish Top FE Ford
ChamberComp Ratio
6510.71 to 1
729.95 to 1
769.58 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Ford

Engine Family: FE Ford

Engine Size: 390

Cylinder Bore Size: 4.080 in , 103.550 mm

Ring Groove Width: 1/16-1/16-3/16"

Compression Height: 1.775"

Pin Diameter: 0.975"

Connecting Rod Length: 6.489"

Crankshaft Stroke: 3.784"

Cylinder Head: FE Ford

TDC Assembly Height: 10.156" ( Zero Deck Height )

Download Piston Instructions
