late Model Mustang

Ford 351W 5.8

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Ring Groove Width Show all Ring Groove Width
3550-4060 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.77 3550-4060 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.77
from $669.95
from $669.95
362 Small Block Ford 351W, FX, Comp Height: 1.77, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-11.52, 64cc-10.69, 70cc-10
Choose Options
3550-4040 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.77 3550-4040 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.77
from $669.95
from $669.95
359 Small Block Ford 351W, FX, Comp Height: 1.77, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-11.44, 64cc-10.63, 70cc-9.92
Choose Options
3550-4030 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.77 3550-4030 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.77
from $669.95
from $669.95
357 Small Block Ford 351W, FX, Comp Height: 1.77, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-11.4, 64cc-10.58, 70cc-9.87
Choose Options
3550-4000 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.77 3550-4000 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.77
from $669.95
from $669.95
352 Small Block Ford 351W, FX, Comp Height: 1.77, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-11.26, 64cc-10.46, 70cc-9.76
Choose Options
3458-4060 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.48 3458-4060 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
362 Small Block Ford 351W, FX, Comp Height: 1.48, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-9.77, 64cc-9.2, 70cc-8.68
Choose Options
3458-4030 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.48 3458-4030 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
357 Small Block Ford 351W, FX, Comp Height: 1.48, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-9.67, 64cc-9.1, 70cc-8.59
Choose Options
3458-4040 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.48 3458-4040 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
359 Small Block Ford 351W, FX, Comp Height: 1.48, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-9.71, 64cc-9.13, 70cc-8.63
Choose Options
3458-4000 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48 3458-4000 351W - 5.8 Small Block Ford 351W FX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
352 Small Block Ford 351W, FX, Comp Height: 1.48, -18cc Dish Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-9.56, 64cc-8.99, 70cc-8.5
Choose Options
3450-4060 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.48 3450-4060 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
362 Small Block Ford 351W, FX, Comp Height: 1.48, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-11.52, 64cc-10.69, 70cc-10
Choose Options
3450-4040 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.48 3450-4040 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
359 Small Block Ford 351W, FX, Comp Height: 1.48, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-11.44, 64cc-10.63, 70cc-9.92
Choose Options
3450-4000 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48 3450-4000 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
352 Small Block Ford 351W, FX, Comp Height: 1.48, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-11.26, 64cc-10.46, 70cc-9.76
Choose Options
3450-4030 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.48 3450-4030 351W - 5.8 Small Block Ford 351W FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.48
from $669.95
from $669.95
357 Small Block Ford 351W, FX, Comp Height: 1.48, -4cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-11.4, 64cc-10.58, 70cc-9.87
Choose Options
8883-4060 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.77 8883-4060 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.77
from $559.95
from $559.95
362 Small Block Ford 351W, SX, Comp Height: 1.77, -18cc Dish Top, PIN: .912", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-9.77, 64cc-9.2, 70cc-8.68
Choose Options
8883-4040 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.77 8883-4040 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.77
from $559.95
from $559.95
359 Small Block Ford 351W, SX, Comp Height: 1.77, -18cc Dish Top, PIN: .912", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-9.71, 64cc-9.13, 70cc-8.63
Choose Options
8883-4030 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.77 8883-4030 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.77
from $559.95
from $559.95
357 Small Block Ford 351W, SX, Comp Height: 1.77, -18cc Dish Top, PIN: .912", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-9.67, 64cc-9.1, 70cc-8.59
Choose Options

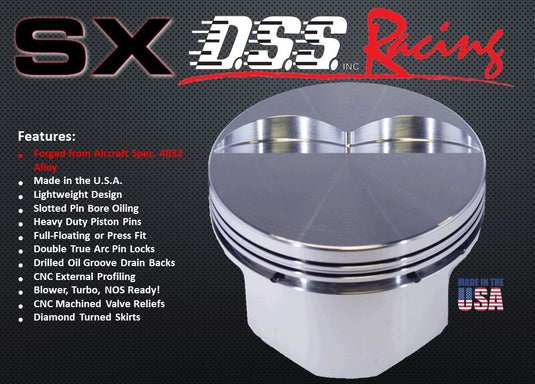

8883-4000 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.77 8883-4000 351W - 5.8 Small Block Ford 351W SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.77
from $559.95
from $559.95
352 Small Block Ford 351W, SX, Comp Height: 1.77, -18cc Dish Top, PIN: .912", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-9.56, 64cc-8.99, 70cc-8.5
Choose Options
