PART #: 8880-4030

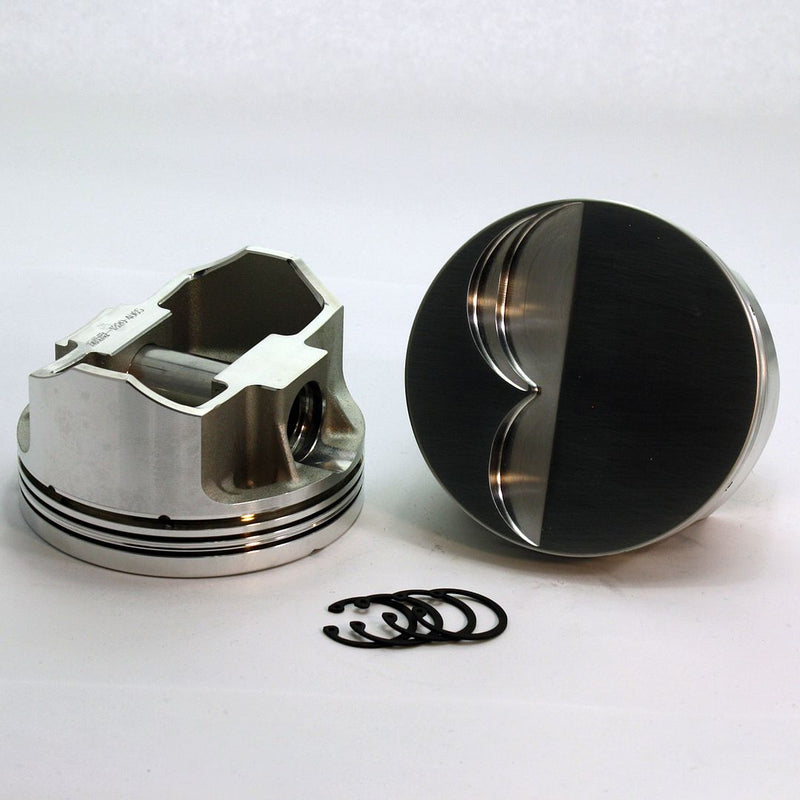

8880-4030 351W - 5.8 Small Block Ford 351W SX Series -5cc Flat Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore Pin Dia.: 0.912" Comp Height: 1.77"

$559.95
$559.95
Sale Sold out
/
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

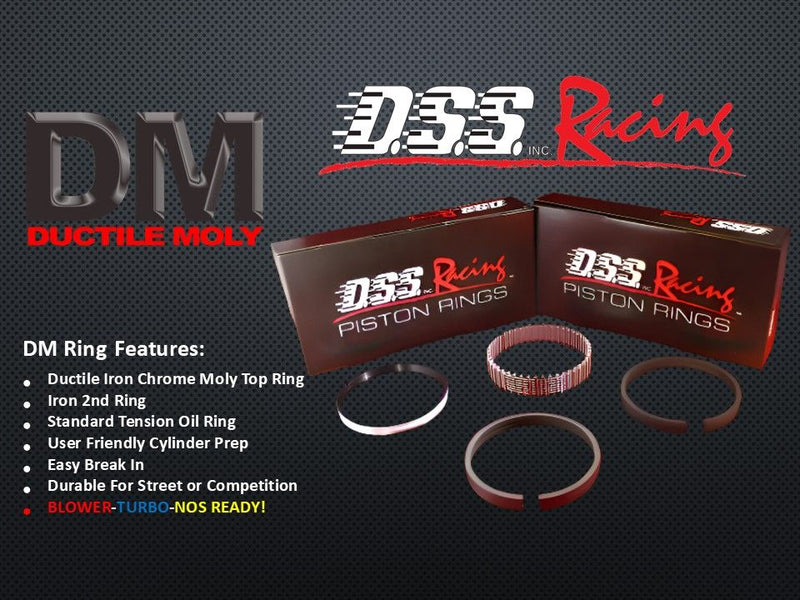

Piston & Ring Kit Option:
This is a pre order item. We will ship it when it comes in stock.

357 Small Block Ford 351W, SX, Comp Height: 1.77, -5cc Flat Top , PIN: .912", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-11.26, 64cc-10.45, 70cc-9.77


Engine Brand: Ford

Engine Family: Small Block Ford 351W

Engine Size: 351W - 5.8

With/Without Rings: Without Rings

Cylinder Bore Size: 4.030 in , 102.281 mm

Ring Width: 1/16-1/16-3/16"

Compression Height: 1.770"

Pin Diameter: 0.912"

Connecting Rod Length: 5.956"

Crankshaft Stroke: 3.500"

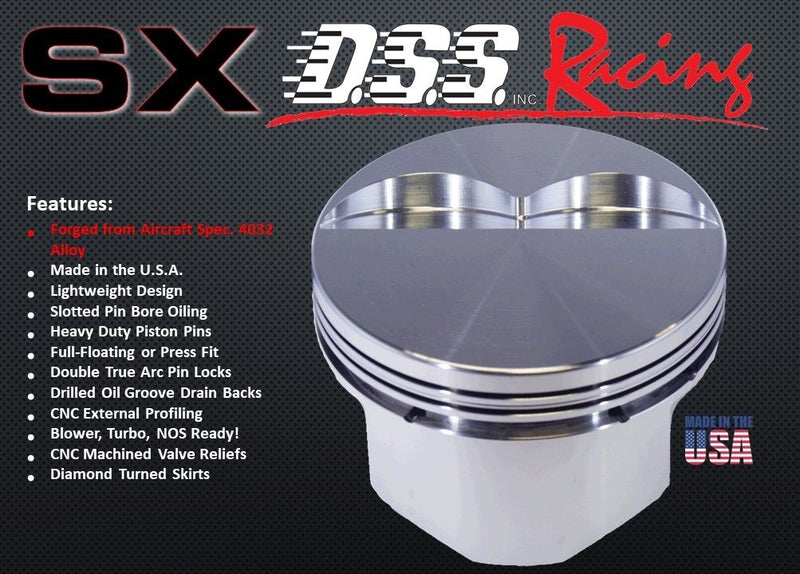

Piston Series: SX 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBF 20 Degree Inline & Twisted Wedge

TDC Assembly Height: 9.476"

Piston Top Aprox. Comp. Ratio:

-5cc Flat Top SBF 20 Degree Inline & Twisted Wedge
ChamberComp Ratio
5811.26 to 1
6410.45 to 1
709.77 to 1

Download Piston Instructions


Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Piston Specs

Engine Brand: Ford

Engine Family: Small Block Ford 351W

Engine Size: 351W - 5.8

With/Without Rings: Without Rings

Cylinder Bore Size: 4.030 in , 102.281 mm

Ring Width: 1/16-1/16-3/16"

Compression Height: 1.770"

Pin Diameter: 0.912"

Connecting Rod Length: 5.956"

Crankshaft Stroke: 3.500"

Piston Series: SX 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBF 20 Degree Inline & Twisted Wedge

TDC Assembly Height: 9.476"

Piston Top Aprox. Comp. Ratio:

-5cc Flat Top SBF 20 Degree Inline & Twisted Wedge
ChamberComp Ratio
5811.26 to 1
6410.45 to 1
709.77 to 1

Download Piston Instructions
