PART #: 8750-4040

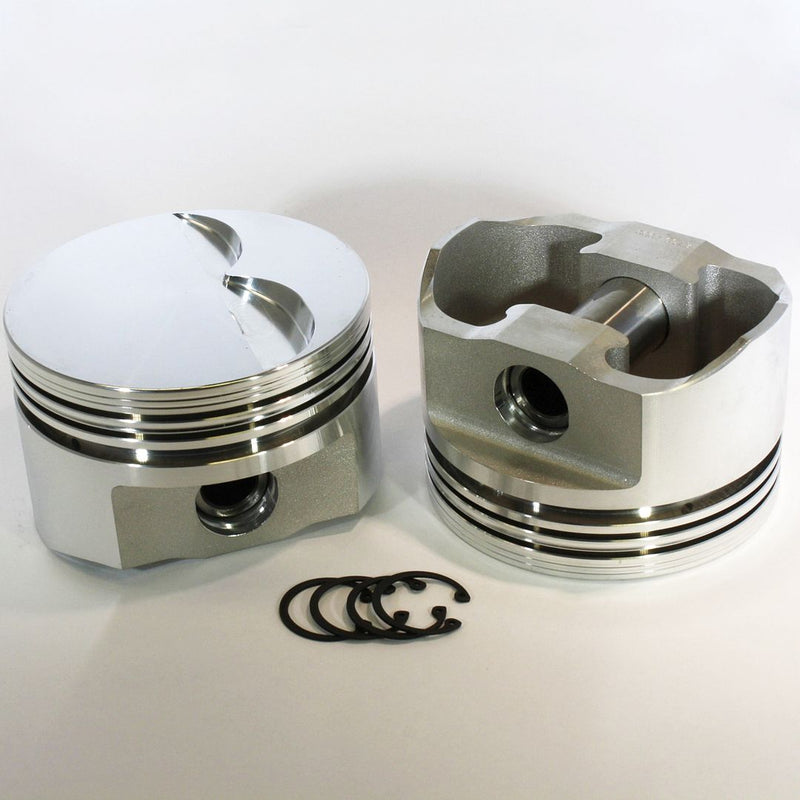

8750-4040 351W - 5.8 Small Block Ford 351W E Series -3cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore Pin Dia.: 0.912" Comp Height: 1.77"

$409.95
$409.95
Sale Sold out
/
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

Piston & Ring Kit Option:
This is a pre order item. We will ship it when it comes in stock.

359 Small Block Ford 351W, E, Comp Height: 1.77, -3cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 5/64-5/64-3/16" , Stroke: 3.500", ROD: 5.956, Approx Comp Ratio: 58cc-11.61, 64cc-10.76, 70cc-10.03


Engine Brand: Ford

Engine Family: Small Block Ford 351W

Engine Size: 351W - 5.8

With/Without Rings: Without Rings

Cylinder Bore Size: 4.040 in , 102.535 mm

Ring Width: 5/64-5/64-3/16"

Compression Height: 1.770"

Pin Diameter: 0.912"

Connecting Rod Length: 5.956"

Crankshaft Stroke: 3.500"

Piston Series: E 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBF 20 Degree Inline

TDC Assembly Height: 9.476"

Piston Top Aprox. Comp. Ratio:

-3cc Flat Top SBF 20 Degree Inline
ChamberComp Ratio
5811.61 to 1
6410.76 to 1
7010.03 to 1

Download Piston Instructions

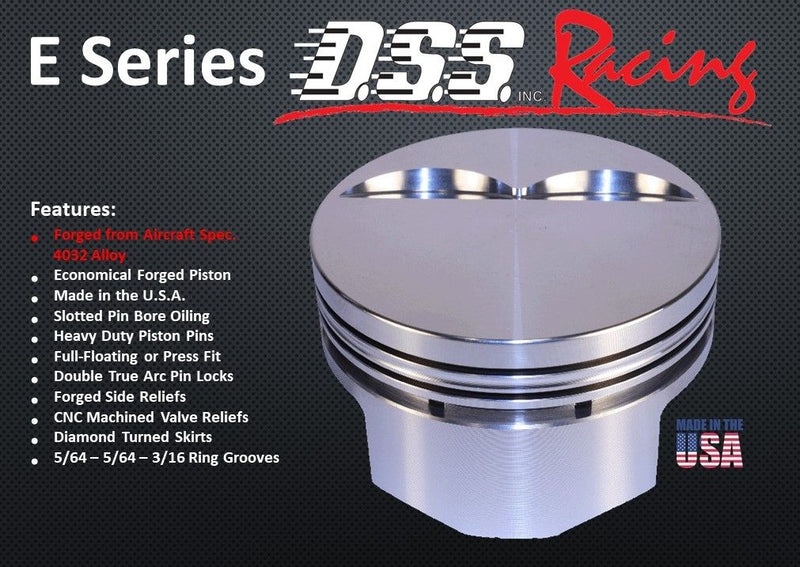

Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Piston Specs

Engine Brand: Ford

Engine Family: Small Block Ford 351W

Engine Size: 351W - 5.8

With/Without Rings: Without Rings

Cylinder Bore Size: 4.040 in , 102.535 mm

Ring Width: 5/64-5/64-3/16"

Compression Height: 1.770"

Pin Diameter: 0.912"

Connecting Rod Length: 5.956"

Crankshaft Stroke: 3.500"

Piston Series: E 4032 Alloy

Alloy: 4032 Alloy

Cylinder Head: SBF 20 Degree Inline

TDC Assembly Height: 9.476"

Piston Top Aprox. Comp. Ratio:

-3cc Flat Top SBF 20 Degree Inline
ChamberComp Ratio
5811.61 to 1
6410.76 to 1
7010.03 to 1

Download Piston Instructions
