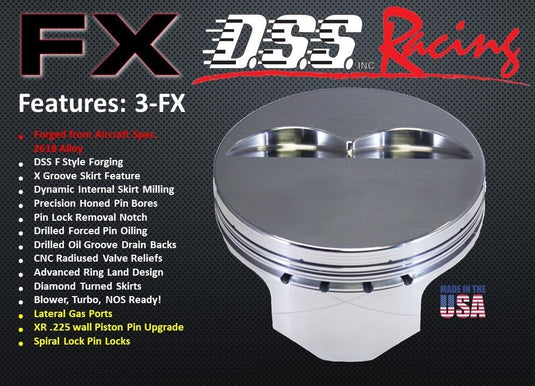

3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"

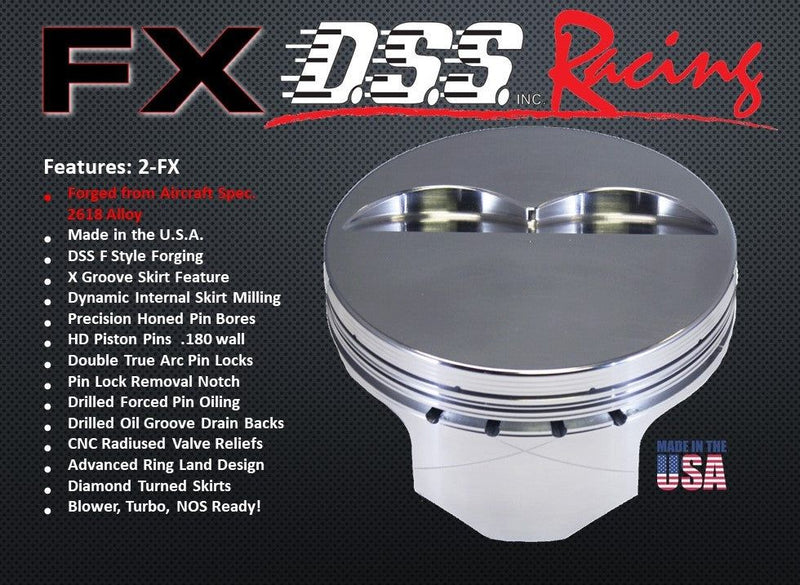

Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"

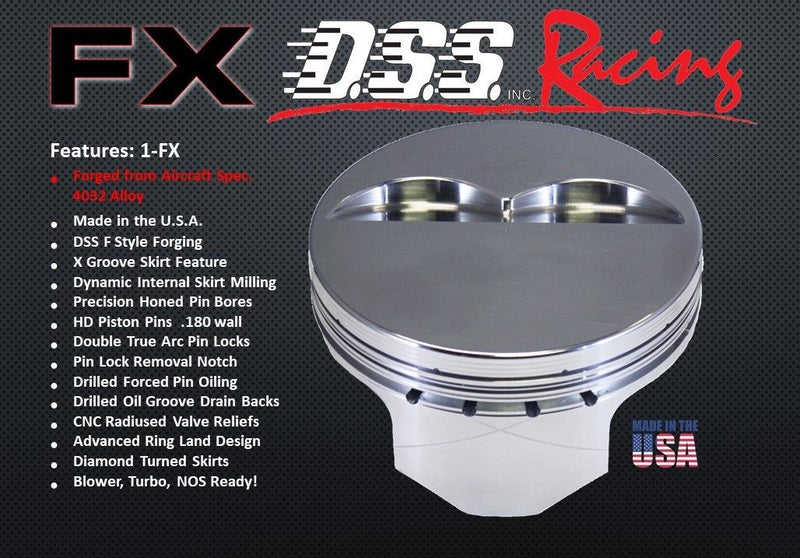

Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"

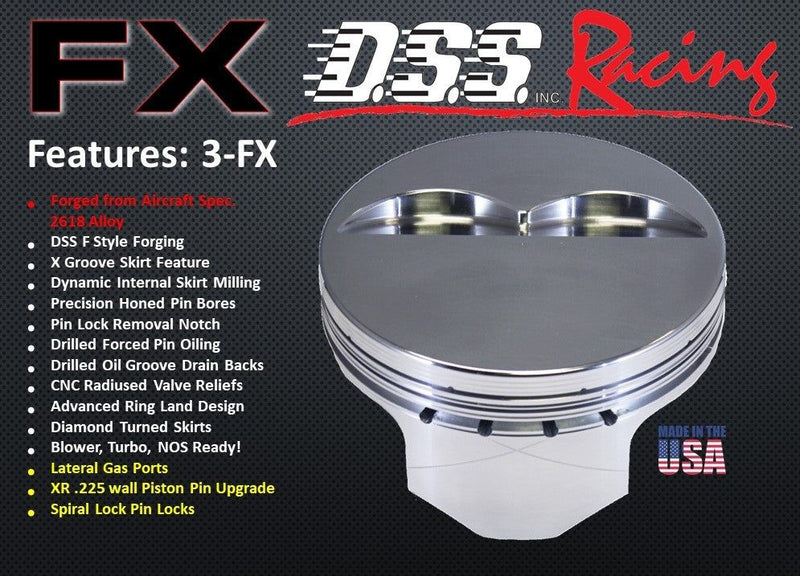

Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"
Load image into Gallery viewer, 3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.48"

PART #: 1-3466-4000

3466-4000 351W - 5.8 Small Block Ford 351W FX Series +6cc Dome Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore Pin Dia.: 0.927" Comp Height: 1.48"

$719.95
$719.95
Sale Sold out
/
Piston Series Option:
Piston Ring Kit Option:
Ships in 1 - 8 days

Ships in 1 - 8 days

Made in the USA

Made in the USA

Secure Payment

Secure Payment

This is a pre order item. We will ship it when it comes in stock.

352 Small Block Ford 351W, FX, Comp Height: 1.48, +6cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.500", ROD: 6.25, Approx Comp Ratio: 58cc-12.96, 64cc-11.89, 70cc-10.98


Piston Top Aprox. Comp. Ratio:

+6cc Dome Top SBF 20 Degree Inline
ChamberComp Ratio
5812.96 to 1
6411.89 to 1
7010.98 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Ford

Engine Family: Small Block Ford 351W

Engine Size: 351W - 5.8

Cylinder Bore Size: 4.000 in , 101.520 mm

Ring Groove Width: 1.2/1.2/3MM

Compression Height: 1.480"

Pin Diameter: 0.927"

Connecting Rod Length: 6.250"

Crankshaft Stroke: 3.500"

Cylinder Head: SBF 20 Degree Inline

TDC Assembly Height: 9.480" ( Zero Deck Height )

Download Piston Instructions


Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Piston Specs

Piston Top Aprox. Comp. Ratio:

+6cc Dome Top SBF 20 Degree Inline
ChamberComp Ratio
5812.96 to 1
6411.89 to 1
7010.98 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Ford

Engine Family: Small Block Ford 351W

Engine Size: 351W - 5.8

Cylinder Bore Size: 4.000 in , 101.520 mm

Ring Groove Width: 1.2/1.2/3MM

Compression Height: 1.480"

Pin Diameter: 0.927"

Connecting Rod Length: 6.250"

Crankshaft Stroke: 3.500"

Cylinder Head: SBF 20 Degree Inline

TDC Assembly Height: 9.480" ( Zero Deck Height )

Download Piston Instructions

Piston Series Comparison Chart

Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
