Ford 347 - 3.400 Stroke

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
3100-4185 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.09 3100-4185 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
374 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.8, 64cc-10.95, 70cc-10.22
Choose Options
3100-4165 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.09 3100-4165 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
371 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.71, 64cc-10.89, 70cc-10.17
Choose Options
3100-4155 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.09 3100-4155 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
369 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.65, 64cc-10.83, 70cc-10.12
Choose Options
3100-4125 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.09 3100-4125 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
364 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.53, 64cc-10.72, 70cc-10.01
Choose Options
3100-4060 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.09 3100-4060 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
352 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.23, 64cc-10.42, 70cc-9.75
Choose Options
3100-4040 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.09 3100-4040 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
349 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.15, 64cc-10.36, 70cc-9.67
Choose Options
3100-4030 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.09 3100-4030 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
347 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-11.11, 64cc-10.31, 70cc-9.62
Choose Options
3100-4000 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.09 3100-4000 347 Stroker Small Block Ford 289 - 302 FX Series -4cc Flat Top SBF 20 Degree Inline Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.09
from $669.95
from $669.95
342 Small Block Ford 289 - 302, FX, Comp Height: 1.09, -4cc Flat Top , PIN: .912", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-10.97, 64cc-10.19, 70cc-9.52
Choose Options

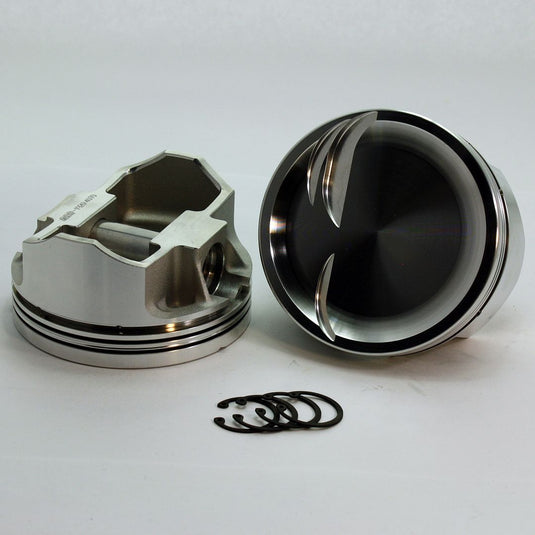

8873-4185 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.09 8873-4185 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.185 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
374 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-10.01, 64cc-9.42, 70cc-8.9
Choose Options
8873-4165 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.09 8873-4165 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.165 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
371 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.95, 64cc-9.36, 70cc-8.85
Choose Options
8873-4155 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.09 8873-4155 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.155 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
369 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.9, 64cc-9.31, 70cc-8.8
Choose Options
8873-4125 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.09 8873-4125 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.125 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
364 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.8, 64cc-9.21, 70cc-8.71
Choose Options
8873-4060 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.09 8873-4060 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
352 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.53, 64cc-8.97, 70cc-8.47
Choose Options
8873-4040 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.09 8873-4040 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
349 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.47, 64cc-8.9, 70cc-8.42
Choose Options
8873-4030 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.09 8873-4030 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
347 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.42, 64cc-8.87, 70cc-8.38
Choose Options
8873-4000 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.09 8873-4000 347 Stroker Small Block Ford 289 - 302 SX Series -18cc Dish Top SBF 20 Degree Inline & Twisted Wedge Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.09
from $599.95
from $599.95
342 Small Block Ford 289 - 302, SX, Comp Height: 1.09, -18cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.4, Approx Comp Ratio: 58cc-9.32, 64cc-8.76, 70cc-8.28
Choose Options
