Chevy 4.8 - 5.3 - 5.7 - LS1 - LS6 4.000

Chevy 4.8 - 5.3 - 5.7 - LS1 - LS6 4.000" Stroke

STEP 1: Choose Cyl Bore Size Show all STEP 1: Choose Cyl Bore Size
STEP 2: Piston Series Show all STEP 2: Piston Series
STEP 3: Connecting Rod Length Show all STEP 3: Connecting Rod Length
STEP 4: Piston Pin Diameter Show all STEP 4: Piston Pin Diameter
STEP 5: Cylinder Head Type Show all STEP 5: Cylinder Head Type
STEP 6: Top - Comp. Ratio Show all STEP 6: Top - Comp. Ratio
Compression Height Show all Compression Height
Crankshaft Stroke Show all Crankshaft Stroke

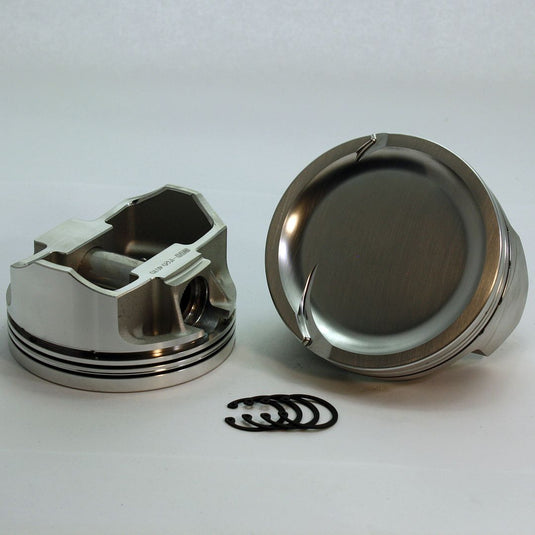

1915-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore Pin Dia.: 0.943 1915-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
385 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.81, 66cc-8.66, 72cc-8.25 *
Choose Options
1915-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore Pin Dia.: 0.943 1915-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
383 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.78, 66cc-8.62, 72cc-8.21 *
Choose Options
1915-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore Pin Dia.: 0.943 1915-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
382 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.76, 66cc-8.62, 72cc-8.19 *
Choose Options
1915-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore Pin Dia.: 0.943 1915-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
371 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.55, 66cc-8.41, 72cc-7.99 *
Choose Options
1915-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.943 1915-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
367 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.48, 66cc-8.33, 72cc-7.93 *
Choose Options
1915-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore Pin Dia.: 0.943 1915-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
365 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.44, 66cc-8.3, 72cc-7.89 *
Choose Options
1915-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore Pin Dia.: 0.943 1915-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
360 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.35, 66cc-8.2, 72cc-7.81 *
Choose Options
1914-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore Pin Dia.: 0.943 1914-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
359 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.33, 66cc-8.18, 72cc-7.79 *
Choose Options
1914-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore Pin Dia.: 0.943 1914-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
385 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.4, 66cc-9.23, 72cc-8.74 *
Choose Options
1914-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore Pin Dia.: 0.943 1914-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
383 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.36, 66cc-9.18, 72cc-8.71 *
Choose Options

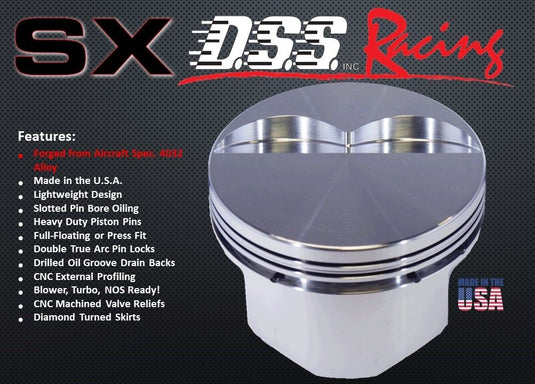

1914-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore Pin Dia.: 0.943 1914-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
382 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.33, 66cc-9.16, 72cc-8.69 *
Choose Options
1914-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore Pin Dia.: 0.943 1914-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
371 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.12, 66cc-8.95, 72cc-8.48 *
Choose Options
1914-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.943 1914-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
367 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.03, 66cc-8.87, 72cc-8.41 *
Choose Options

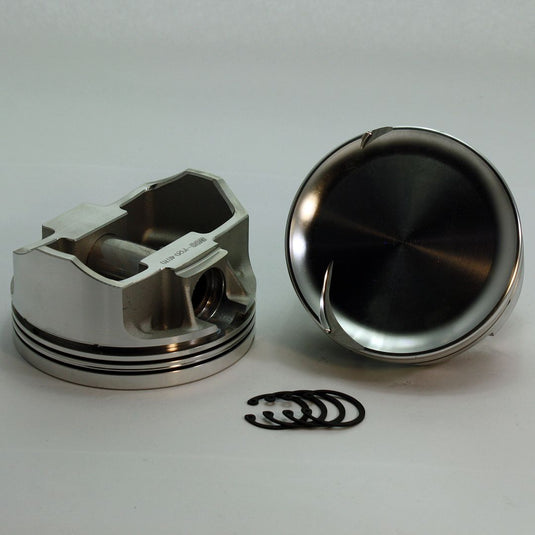

1914-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore Pin Dia.: 0.943 1914-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
365 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9, 66cc-8.83, 72cc-8.37 *
Choose Options
1914-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore Pin Dia.: 0.943 1914-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
360 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.89, 66cc-8.73, 72cc-8.27 *
Choose Options
1913-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore Pin Dia.: 0.943 1913-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore Pin Dia.: 0.943
from $689.95
from $689.95
359 Chevy LS, SX, Comp Height: 1.14, -22cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-8.87, 66cc-8.71, 72cc-8.26 *
Choose Options
