Chevy 4.8 - 5.3 - 5.7 - LS1 - LS6 3.900

Chevy 4.8 - 5.3 - 5.7 - LS1 - LS6 3.900" Stroke

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
1863-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore COMP HEIGHT: 1.165 1863-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
350 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.3, 66cc-9.12, 72cc-8.6
Choose Options

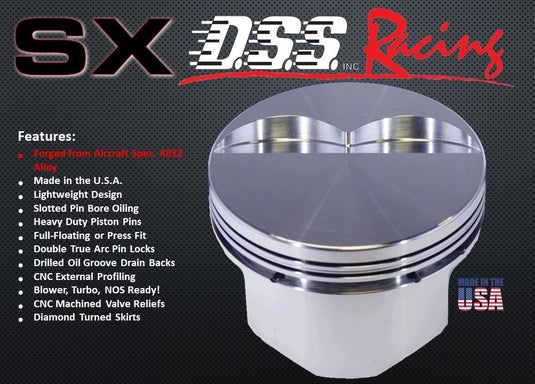

1863-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore COMP HEIGHT: 1.165 1863-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
351 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.33, 66cc-9.14, 72cc-8.62
Choose Options
1863-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore COMP HEIGHT: 1.165 1863-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
356 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.43, 66cc-9.24, 72cc-8.73
Choose Options
1863-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore COMP HEIGHT: 1.165 1863-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
358 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.48, 66cc-9.29, 72cc-8.76
Choose Options

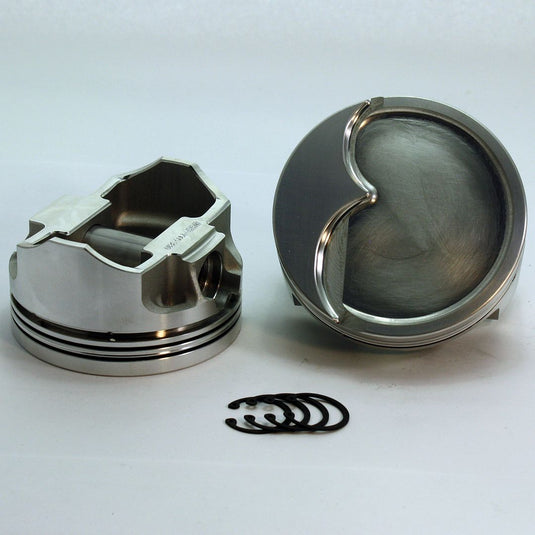

1863-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore COMP HEIGHT: 1.165 1863-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
361 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.55, 66cc-9.34, 72cc-8.82
Choose Options
1863-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore COMP HEIGHT: 1.165 1863-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
372 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.77, 66cc-9.58, 72cc-9.03
Choose Options
1863-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore COMP HEIGHT: 1.165 1863-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
373 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.8, 66cc-9.6, 72cc-9.05
Choose Options
1863-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore COMP HEIGHT: 1.165 1863-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -15cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
375 Chevy LS, SX, Comp Height: 1.165, -15cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.84, 66cc-9.65, 72cc-9.1
Choose Options
1864-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore COMP HEIGHT: 1.165 1864-3780 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.780 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
350 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-8.68, 66cc-8.52, 72cc-8.08
Choose Options
1864-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore COMP HEIGHT: 1.165 1864-3785 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.785 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
351 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-8.7, 66cc-8.54, 72cc-8.09
Choose Options
1864-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore COMP HEIGHT: 1.165 1864-3810 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.810 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
356 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-8.81, 66cc-8.63, 72cc-8.19
Choose Options
1864-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore COMP HEIGHT: 1.165 1864-3820 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.820 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
358 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-8.84, 66cc-8.68, 72cc-8.23
Choose Options
1864-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore COMP HEIGHT: 1.165 1864-3840 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.840 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
361 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-8.9, 66cc-8.74, 72cc-8.28
Choose Options
1864-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore COMP HEIGHT: 1.165 1864-3898 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.898 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
372 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.12, 66cc-8.95, 72cc-8.49
Choose Options

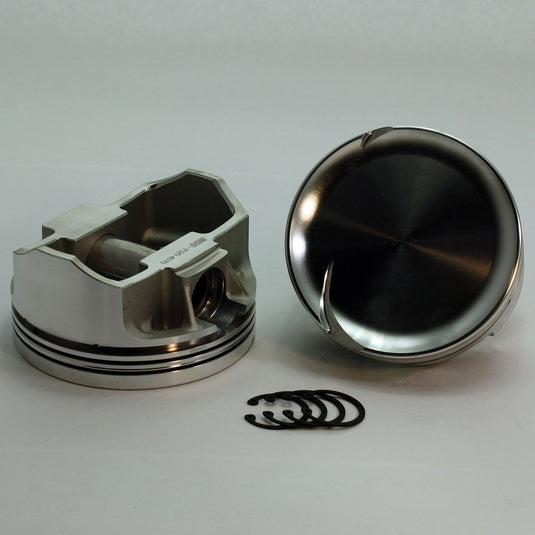

1864-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore COMP HEIGHT: 1.165 1864-3903 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.903 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
373 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.14, 66cc-8.97, 72cc-8.51
Choose Options
1864-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore COMP HEIGHT: 1.165 1864-3913 4.8 - 5.3 - LS1 - LS6 - Stroker Chevy LS SX Series -22cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 3.913 inch bore COMP HEIGHT: 1.165
from $599.95
from $599.95
375 Chevy LS, SX, Comp Height: 1.165, -22cc Dish Top, PIN: .927", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 3.900", ROD: 6.125, Approx Comp Ratio: 64cc-9.18, 66cc-9.01, 72cc-8.54
Choose Options
