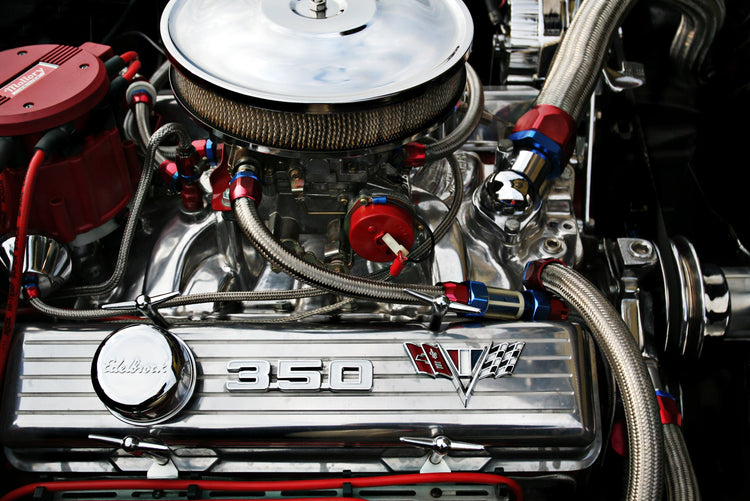

Small Block Chevy engine

Chevy 302

REQUIRED FIELD: Choose Cyl Bore Size First Show all REQUIRED FIELD: Choose Cyl Bore Size First
Cylinder Head Show all Cylinder Head
Crankshaft Stroke Show all Crankshaft Stroke
Piston Pin Diameter Show all Piston Pin Diameter
Connecting Rod Length Show all Connecting Rod Length
Compression Height Show all Compression Height
Piston Top Aprox. Comp. Ratio Show all Piston Top Aprox. Comp. Ratio
2020-4000 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.8 2020-4000 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
302 Small Block Chevy, FX, Comp Height: 1.8, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-9.68, 64cc-9.01, 70cc-8.43
Choose Options

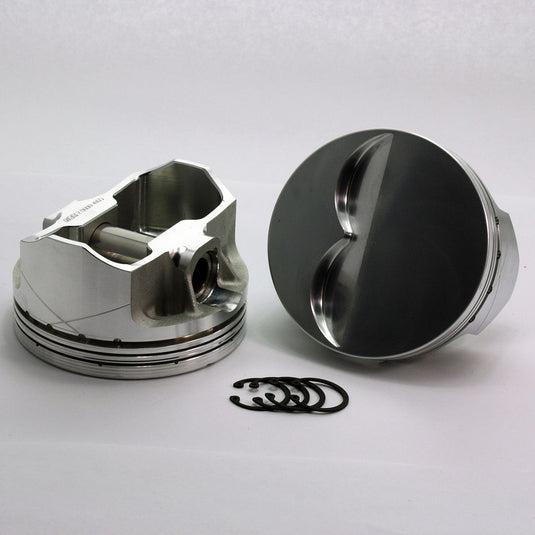

2020-4030 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.8 2020-4030 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
306 Small Block Chevy, FX, Comp Height: 1.8, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-9.79, 64cc-9.1, 70cc-8.51
Choose Options
2020-4040 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.8 2020-4040 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
308 Small Block Chevy, FX, Comp Height: 1.8, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-9.83, 64cc-9.16, 70cc-8.56
Choose Options
2020-4060 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.8 2020-4060 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
311 Small Block Chevy, FX, Comp Height: 1.8, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-9.92, 64cc-9.22, 70cc-8.64
Choose Options

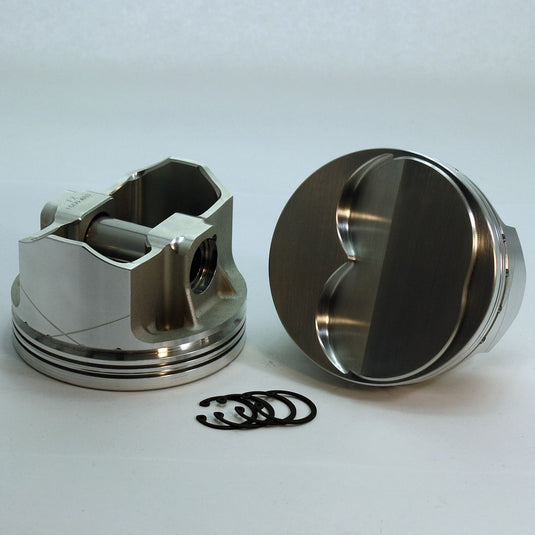

2028-4000 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.8 2028-4000 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
302 Small Block Chevy, FX, Comp Height: 1.8, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-10.93, 64cc-10.07, 70cc-9.33
Choose Options
2028-4030 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.8 2028-4030 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
306 Small Block Chevy, FX, Comp Height: 1.8, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-11.04, 64cc-10.17, 70cc-9.43
Choose Options
2028-4040 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.8 2028-4040 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
308 Small Block Chevy, FX, Comp Height: 1.8, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-11.1, 64cc-10.23, 70cc-9.48
Choose Options
2028-4060 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.8 2028-4060 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.8
from $669.95
from $669.95
311 Small Block Chevy, FX, Comp Height: 1.8, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 5.7, Approx Comp Ratio: 58cc-11.2, 64cc-10.3, 70cc-9.54
Choose Options
2040-4000 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.5 2040-4000 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
302 Small Block Chevy, FX, Comp Height: 1.5, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-9.68, 64cc-9.01, 70cc-8.43
Choose Options
2040-4030 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.5 2040-4030 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
306 Small Block Chevy, FX, Comp Height: 1.5, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-9.79, 64cc-9.1, 70cc-8.51
Choose Options
2040-4040 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.5 2040-4040 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
308 Small Block Chevy, FX, Comp Height: 1.5, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-9.83, 64cc-9.16, 70cc-8.56
Choose Options
2040-4060 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.5 2040-4060 302 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
311 Small Block Chevy, FX, Comp Height: 1.5, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-9.92, 64cc-9.22, 70cc-8.64
Choose Options
2048-4000 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.5 2048-4000 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.000 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
302 Small Block Chevy, FX, Comp Height: 1.5, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-10.93, 64cc-10.07, 70cc-9.33
Choose Options

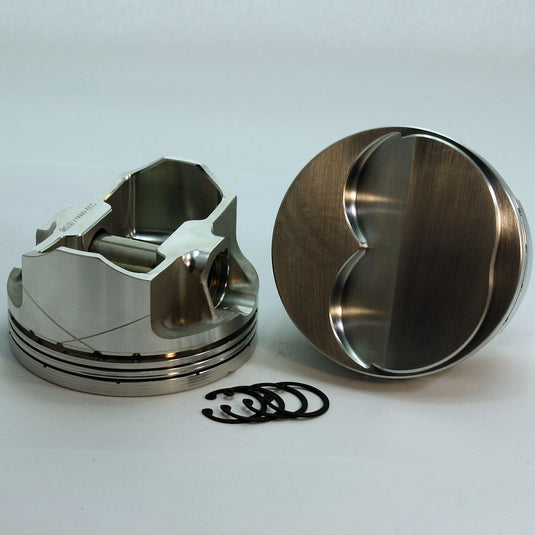

2048-4030 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.5 2048-4030 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.030 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
306 Small Block Chevy, FX, Comp Height: 1.5, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-11.04, 64cc-10.17, 70cc-9.43
Choose Options

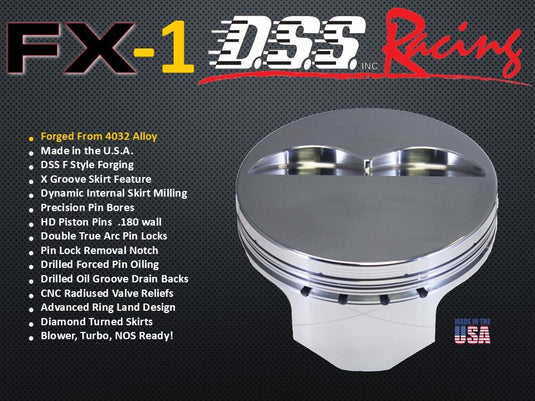

2048-4040 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.5 2048-4040 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.040 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
308 Small Block Chevy, FX, Comp Height: 1.5, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-11.1, 64cc-10.23, 70cc-9.48
Choose Options
2048-4060 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.5 2048-4060 302 Small Block Chevy FX Series +4cc Dome Top SBC 23 Degree Forged Piston Set 4.060 inch bore COMP HEIGHT: 1.5
from $669.95
from $669.95
311 Small Block Chevy, FX, Comp Height: 1.5, +4cc Dome Top, PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.000", ROD: 6, Approx Comp Ratio: 58cc-11.2, 64cc-10.3, 70cc-9.54
Choose Options
