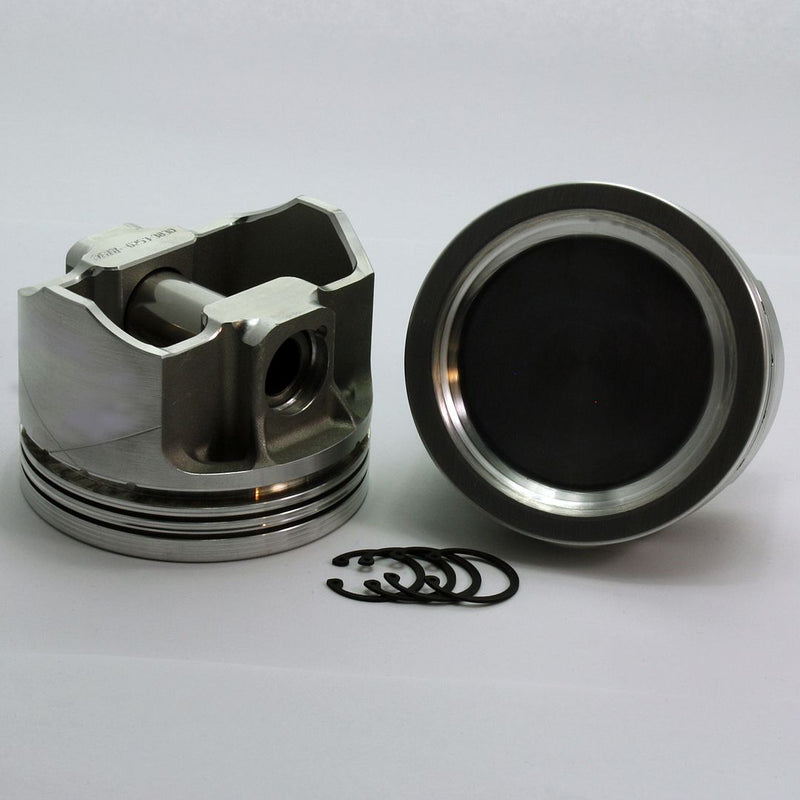

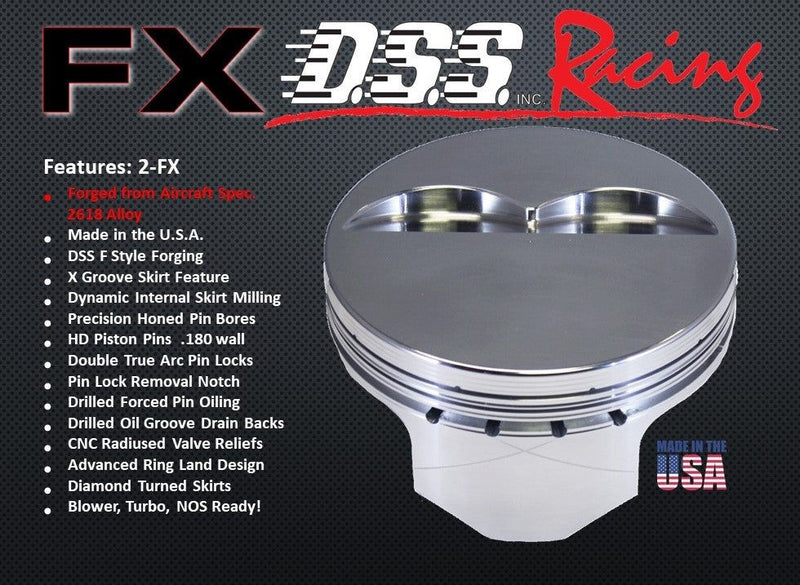

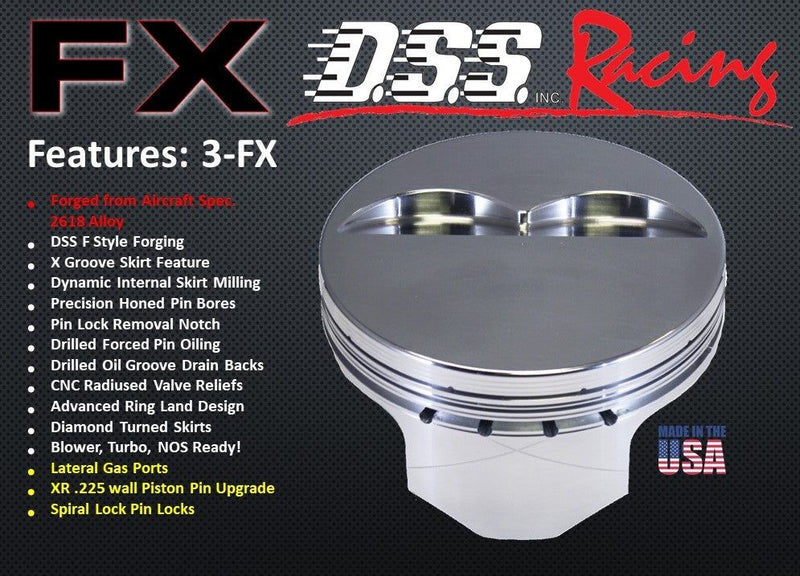

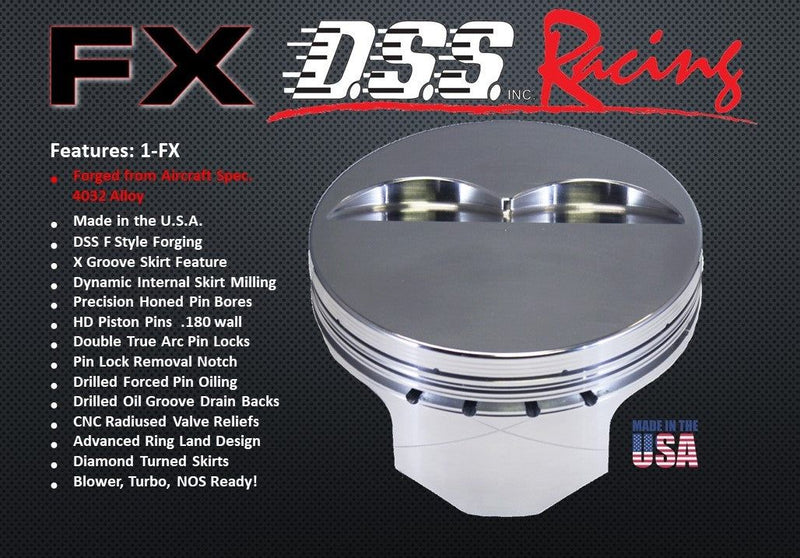

6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"
Load image into Gallery viewer, 6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore COMP HEIGHT: 1.85"

PART #: 1-6203-3830

6203-3830 231 V6 & GN Buick V6 & Grand National FX Series -15cc Dish Top Buick V6 & Grand National Forged Piston Set 3.830 inch bore Pin Dia.: 0.94" Comp Height: 1.85"

$629.95
$629.95
Sale Sold out
/
Piston Series Option:
Piston Ring Kit Option:
Ships in 1 - 8 days

Ships in 1 - 8 days

Forged Pistons Made in the USA!

Forged Pistons Made in the USA!

Secure Payment

Secure Payment

This is a pre order item. We will ship it when it comes in stock.

235 Buick V6 & Grand National, FX, Comp Height: 1.85, -15cc Dish Top, PIN: .94", Full-Floating or Press Fit, Ring Groove: 1/16-1/16-3/16" , Stroke: 3.400", ROD: 5.96, Approx Comp Ratio: 41cc-11.09, 46cc-10.37, 55cc-9.28


Piston Top Aprox. Comp. Ratio:

-15cc Dish Top Buick V6 & Grand National
ChamberComp Ratio
4111.09 to 1
4610.37 to 1
559.28 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Buick

Engine Family: Buick V6 & Grand National

Engine Size: 231 V6 & GN

Cylinder Bore Size: 3.830 in , 97.205 mm

Ring Groove Width: 1/16-1/16-3/16"

Compression Height: 1.850"

Pin Diameter: 0.940"

Connecting Rod Length: 5.960"

Crankshaft Stroke: 3.400"

Cylinder Head: Buick V6 & Grand National

TDC Assembly Height: 9.510" ( Zero Deck Height )

Download Piston Instructions


Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Piston Specs

Piston Top Aprox. Comp. Ratio:

-15cc Dish Top Buick V6 & Grand National
ChamberComp Ratio
4111.09 to 1
4610.37 to 1
559.28 to 1

For accurate Comp Ratio info use the calculator below.

Engine Brand: Buick

Engine Family: Buick V6 & Grand National

Engine Size: 231 V6 & GN

Cylinder Bore Size: 3.830 in , 97.205 mm

Ring Groove Width: 1/16-1/16-3/16"

Compression Height: 1.850"

Pin Diameter: 0.940"

Connecting Rod Length: 5.960"

Crankshaft Stroke: 3.400"

Cylinder Head: Buick V6 & Grand National

TDC Assembly Height: 9.510" ( Zero Deck Height )

Download Piston Instructions

Piston Series Comparison Chart

Features: Piston Series


E series

  SX series  1-FX series  2-FX series  3-FX series
Broached pin oiling slots

x

x






Drilled, forced wrist pin oiling



x

x

x

x
Forged drain-back windows

x








Drilled bottom ring land intersecting oil groove drain-backs



x

x

x

x
Slightly larger, deeper valve reliefs than OEM

x








CNC machined valve reliefs for moderate performance heads and cam combinations



x
Larger, deeper CNC valve reliefs for more aggressive cylinder head and cam combinations





x

x

x
Premium Aircraft spec. 4032 low expansion alloy

x

x

x




Premium Aircraft spec. 2618 alloy







x

x
Blower, Turbo, NOS ready



x

x

x

x
Brushed piston crown





x

x

x
Turned dishs

x

x






Max Quench milled dishs





x

x

x
Additional CNC milling for weight reduction in non-critical areas





x

x

x
Patented “X Groove” skirt for superior cylinder and ring life





x

x

x
Thinner/shallower Ring grooves for maximum ring seal and land strength





x

x

x
Low volume contact reduction grooves

x

x

x
2nd ring land accumulator groove prevents ring flutter

x

x

x
3rd ring land scraper relief

x

x

x
Oil ring groove relief reservoir

x

x

x
Inner and outer pin boss weight reduction radiusing

x

x

x
Tighter control of crown thickness yields consistently lighter parts

x

x

x
Dynamic skirt milling controls skirt thickness for consistently lighter parts



x

x

x
Diamond-turned high strength skirts

x

x

x

x

x
High-strength piston pins

x

x

x

x

x
Extreme Duty XR wrist pins



x
Horizontal Gas Ports enhance ring seal

x
Forged and machined in the USA

x

x

x

x

x
Engine Power TV

The DSS FX, X-Groove Feature
