Buick 3800 V6

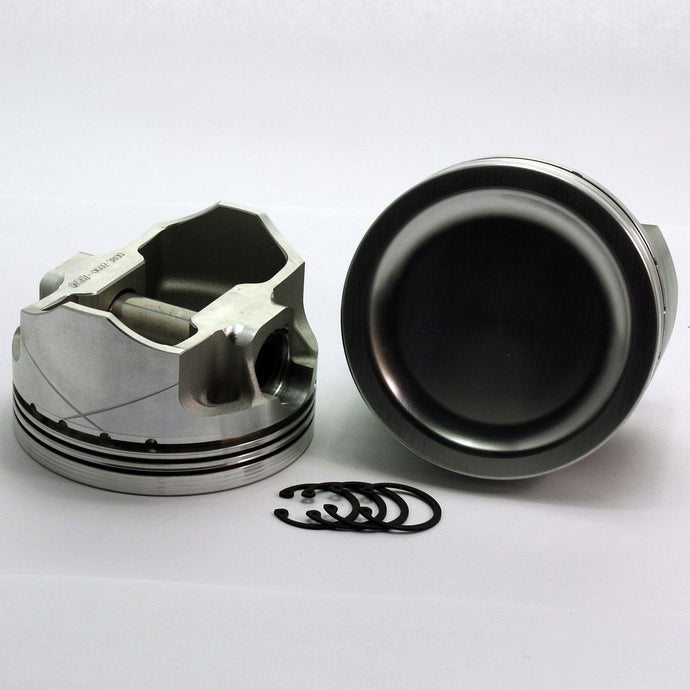

6230-3800 3800 V6 Buick V6 FX Series -6cc Flat Top Buick V6 3800 Forged Piston Set 3.800 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
231 Buick V6, FX, Comp Height: 1.205, -6cc Flat Top , PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-10.08, 59cc-9.71, 62cc-9.37 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6230-3810 3800 V6 Buick V6 FX Series -6cc Flat Top Buick V6 3800 Forged Piston Set 3.810 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
233 Buick V6, FX, Comp Height: 1.205, -6cc Flat Top , PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-10.16, 59cc-9.79, 62cc-9.42 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6230-3820 3800 V6 Buick V6 FX Series -6cc Flat Top Buick V6 3800 Forged Piston Set 3.820 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
234 Buick V6, FX, Comp Height: 1.205, -6cc Flat Top , PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-10.2, 59cc-9.82, 62cc-9.46 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6230-3830 3800 V6 Buick V6 FX Series -6cc Flat Top Buick V6 3800 Forged Piston Set 3.830 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
235 Buick V6, FX, Comp Height: 1.205, -6cc Flat Top , PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-10.24, 59cc-9.84, 62cc-9.5 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6230-3840 3800 V6 Buick V6 FX Series -6cc Flat Top Buick V6 3800 Forged Piston Set 3.840 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
236 Buick V6, FX, Comp Height: 1.205, -6cc Flat Top , PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-10.25, 59cc-9.88, 62cc-9.53 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6233-3800 3800 V6 Buick V6 FX Series -15cc Dish Top Buick V6 3800 Forged Piston Set 3.800 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
231 Buick V6, FX, Comp Height: 1.205, -15cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-9.04, 59cc-8.75, 62cc-8.48 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6233-3810 3800 V6 Buick V6 FX Series -15cc Dish Top Buick V6 3800 Forged Piston Set 3.810 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
233 Buick V6, FX, Comp Height: 1.205, -15cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-9.11, 59cc-8.81, 62cc-8.54 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6233-3820 3800 V6 Buick V6 FX Series -15cc Dish Top Buick V6 3800 Forged Piston Set 3.820 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
234 Buick V6, FX, Comp Height: 1.205, -15cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-9.14, 59cc-8.85, 62cc-8.56 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6233-3830 3800 V6 Buick V6 FX Series -15cc Dish Top Buick V6 3800 Forged Piston Set 3.830 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
235 Buick V6, FX, Comp Height: 1.205, -15cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-9.18, 59cc-8.86, 62cc-8.59 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6233-3840 3800 V6 Buick V6 FX Series -15cc Dish Top Buick V6 3800 Forged Piston Set 3.840 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
236 Buick V6, FX, Comp Height: 1.205, -15cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-9.19, 59cc-8.9, 62cc-8.62 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6235-3800 3800 V6 Buick V6 FX Series -20cc Dish Top Buick V6 3800 Forged Piston Set 3.800 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
231 Buick V6, FX, Comp Height: 1.205, -20cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-8.56, 59cc-8.31, 62cc-8.05 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6235-3810 3800 V6 Buick V6 FX Series -20cc Dish Top Buick V6 3800 Forged Piston Set 3.810 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
233 Buick V6, FX, Comp Height: 1.205, -20cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-8.63, 59cc-8.35, 62cc-8.11 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6235-3820 3800 V6 Buick V6 FX Series -20cc Dish Top Buick V6 3800 Forged Piston Set 3.820 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
234 Buick V6, FX, Comp Height: 1.205, -20cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-8.65, 59cc-8.39, 62cc-8.14 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6235-3830 3800 V6 Buick V6 FX Series -20cc Dish Top Buick V6 3800 Forged Piston Set 3.830 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
235 Buick V6, FX, Comp Height: 1.205, -20cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-8.68, 59cc-8.42, 62cc-8.17 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
6235-3840 3800 V6 Buick V6 FX Series -20cc Dish Top Buick V6 3800 Forged Piston Set 3.840 inch bore Pin Dia.: 0.905" Comp Height: 1.205"
Regular price
from $629.95
Sale price
from $629.95
Regular price
Unit price
/per
236 Buick V6, FX, Comp Height: 1.205, -20cc Dish Top, PIN: .905", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.400", ROD: 5.64, Approx Comp Ratio: 56cc-8.71, 59cc-8.45, 62cc-8.19 NOTE: Effective April 17, 2025, all Buick ring grooves have been updated to the new specifications of 1.2-1.2-3mm. Parts manufactured prior to this date feature ring grooves with dimensions of 1/16-1/16-3/16.
