Collection:
Products
5074 products

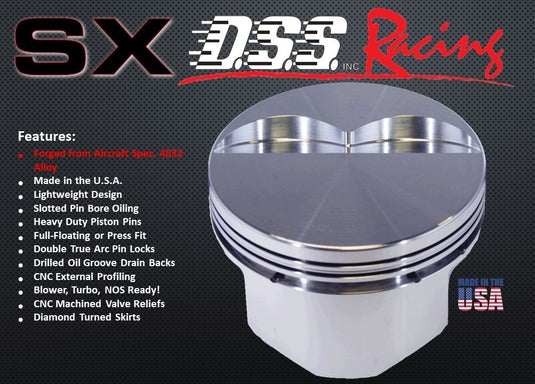

1935-4125 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.125 inch bore Pin Dia.: 0.943" Comp Height: 1.14"
Regular price
from $559.95
Sale price
from $559.95
Regular price
Unit price
/per
428 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.62, 66cc-9.45, 72cc-8.99
1935-4130 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.130 inch bore Pin Dia.: 0.943" Comp Height: 1.14"
Regular price
from $559.95
Sale price
from $559.95
Regular price
Unit price
/per
429 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.64, 66cc-9.47, 72cc-9

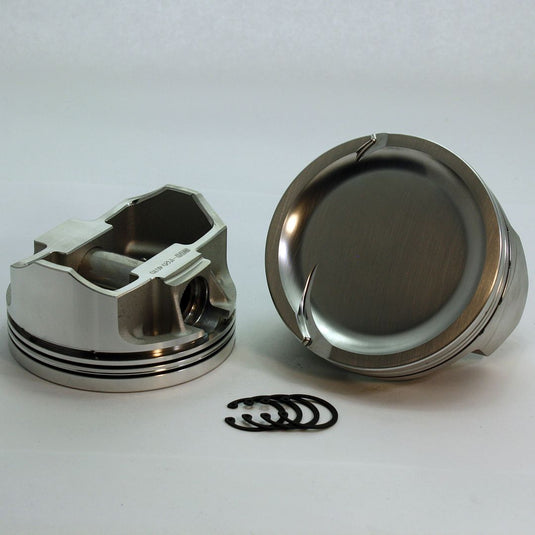

1935-4155 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.155 inch bore Pin Dia.: 0.943" Comp Height: 1.14"
Regular price
from $559.95
Sale price
from $559.95
Regular price
Unit price
/per
434 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.72, 66cc-9.56, 72cc-9.08
1935-4165 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.165 inch bore Pin Dia.: 0.943" Comp Height: 1.14"
Regular price
from $559.95
Sale price
from $559.95
Regular price
Unit price
/per
436 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.76, 66cc-9.6, 72cc-9.12
1935-4185 6.0 - LS2 -6.2 - LS3 - L98 - LQ9 - LS7 - LSA - LSX Stroker Chevy LS SX Series -29cc Dish Top LS1,LS2,LS3 and LS7 Forged Piston Set 4.185 inch bore Pin Dia.: 0.943" Comp Height: 1.14"
Regular price
from $559.95
Sale price
from $559.95
Regular price
Unit price
/per
440 Chevy LS, SX, Comp Height: 1.14, -29cc Dish Top, PIN: .943", Full Floating or Press Fit, Ring Groove: 1.5/1.5/3MM, Stroke: 4.000", ROD: 6.098, Approx Comp Ratio: 64cc-9.83, 66cc-9.66, 72cc-9.2
2-FX Series Single Piston
Regular price
$185.00
Sale price
$185.00
Regular price
Unit price
/per
1) Single 2-FX series replacement piston with wrist pin and pin locs.
Put the full part # of the single piston you require in the note section of the check out page. For Example: 2-2200-4030
CAUTION: Like a pair of shoes, best engine building practices dictate that pistons should be replaced in matched sets. That being said, single pistons are available. However, the following points must be understood and considered.
DSS Racing pistons are normally manufactured in matched sets of 4, 6, 8 or 10, for this reason, it is less cost effective to purchase single pistons. They are made to order and are NOT RETURNABLE under any circumstances.
Because the singles you are purchasing were not made at the same time your original pistons were made there will be variations that could effect their weight. They could be heaver or lighter than your original pistons. You will be required to do whatever it takes to match your other pistons weight, including potentially having to re-balance the rotating assembly.
Single Piston Replacement Pro Pip: Do yourself a favor and inspect all your pistons and cylinders carefully before making the decision to buy single replacements. It is very common to order a single piston to replace an obviously damaged piston only to find out you need a few more. One or two replacements might make sense, more than that and it would have been more cost effective and better to replace the whole set.
2000-4000 350 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.000 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $669.95
Sale price
from $669.95
Regular price
Unit price
/per
350 Small Block Chevy, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.06, 64cc-10.29, 70cc-9.61

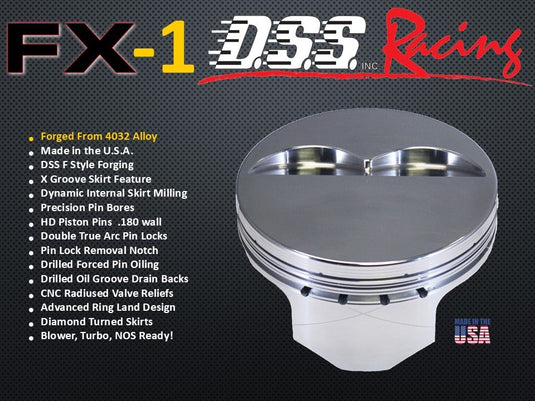

2000-4000 4.3 Chevy V6 FX Series -5cc Flat Top V6 23 Degree Forged Piston Set 4.000 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $599.95
Sale price
from $599.95
Regular price
Unit price
/per
262 Chevy V6, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.04, 64cc-10.27, 70cc-9.6
2000-4030 350 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.030 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $669.95
Sale price
from $669.95
Regular price
Unit price
/per
355 Small Block Chevy, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.2, 64cc-10.4, 70cc-9.72
2000-4030 4.3 Chevy V6 FX Series -5cc Flat Top V6 23 Degree Forged Piston Set 4.030 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $599.95
Sale price
from $599.95
Regular price
Unit price
/per
266 Chevy V6, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.19, 64cc-10.39, 70cc-9.71
2000-4040 350 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.040 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $669.95
Sale price
from $669.95
Regular price
Unit price
/per
357 Small Block Chevy, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.24, 64cc-10.45, 70cc-9.77

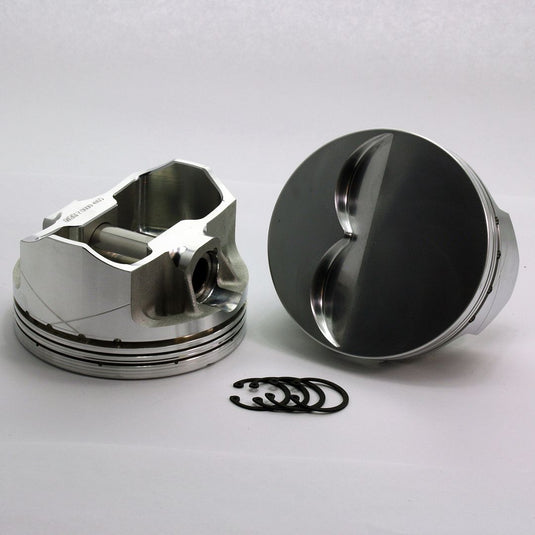

2000-4040 4.3 Chevy V6 FX Series -5cc Flat Top V6 23 Degree Forged Piston Set 4.040 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $599.95
Sale price
from $599.95
Regular price
Unit price
/per
268 Chevy V6, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.24, 64cc-10.46, 70cc-9.78
2000-4060 350 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.060 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $669.95
Sale price
from $669.95
Regular price
Unit price
/per
360 Small Block Chevy, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.32, 64cc-10.51, 70cc-9.84
2000-4060 4.3 Chevy V6 FX Series -5cc Flat Top V6 23 Degree Forged Piston Set 4.060 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $599.95
Sale price
from $599.95
Regular price
Unit price
/per
270 Chevy V6, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.32, 64cc-10.51, 70cc-9.84
2000-4125 350 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.125 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $669.95
Sale price
from $669.95
Regular price
Unit price
/per
372 Small Block Chevy, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.62, 64cc-10.81, 70cc-10.1
2000-4155 350 Small Block Chevy FX Series -5cc Flat Top SBC 23 Degree Forged Piston Set 4.155 inch bore Pin Dia.: 0.927" Comp Height: 1.56"
Regular price
from $669.95
Sale price
from $669.95
Regular price
Unit price
/per
377 Small Block Chevy, FX, Comp Height: 1.56, -5cc Flat Top , PIN: .927", Full-Floating or Press Fit, Ring Groove: 1.2/1.2/3MM, Stroke: 3.480", ROD: 5.7, Approx Comp Ratio: 58cc-11.73, 64cc-10.92, 70cc-10.2
